Documents: DG250-3-63C/GA24-562-A

DG250-3-63C/GA24-562-A | 2.5" | Flanged Globe valve | 3way | Cast Iron body | Bronze trim | CV 63 | NC | NC to C | Pic and Globe Valve Linear Actuator 24VAC/DC Non-Spring Return | with Auxiliary Switch | Bray

2.5 inch | Flanged Globe valve | 3way | Cast Iron body | Bronze trim | CV 63 | Normally Closed | Normally Closed to C | Pic and Globe Valve Linear Actuator 24VAC/DC Non-Spring Return | with Auxiliary Switch

Brand: BraySKU: DG250-3-63C/GA24-562-A
Bray | DG250-3-63C/GA24-562-A

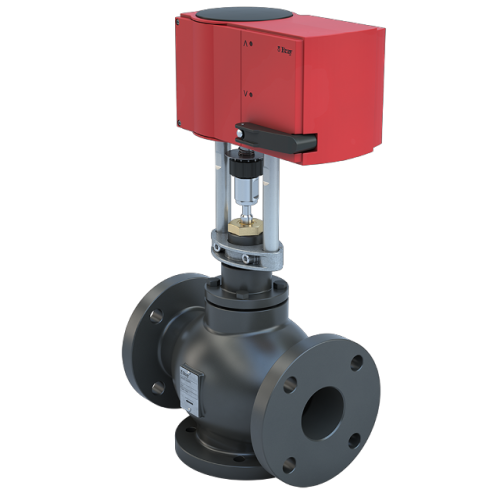

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DG250-3-63C/GA24-562-A

Overview Details for DG250-3-63C/GA24-562-A



Specifications

Product
DG250-3-63C/GA24-562-A
Valve Size
2.5"
2-Way / 3-Way
3-Way
Valve Product Type
Globe Valve
Valve Position
NC to Common (Branch Closed)
Valve End Connection
ANSI Class 125 Flanged
Assembly Cv
63
Actuator Control Signal
On/Off;Floating;Modulating
Actuator Action
Non Spring Return
Fail Position
Fail Last
Actuator Features
Time Out;Auxiliary Switches;Enclosed Terminal Strip
Actuator Power Supply
24 VAC
Actuator Conduit Connection
Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification
IP66
Actuator Stroke Time
Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm
Close Off Pressure
86
Weight
59.4
