DG250-2-63SSC/GASEX24-450-A-HT-WS | 2.5
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$2,603.25
Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

This item ships via FREIGHT
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

The product is not cancelable or returnable unless found defective

Speak With a Technical Expert

Image for Technical Expert

Documents: DG250-2-63SSC/GASEX24-450-A-HT-WS

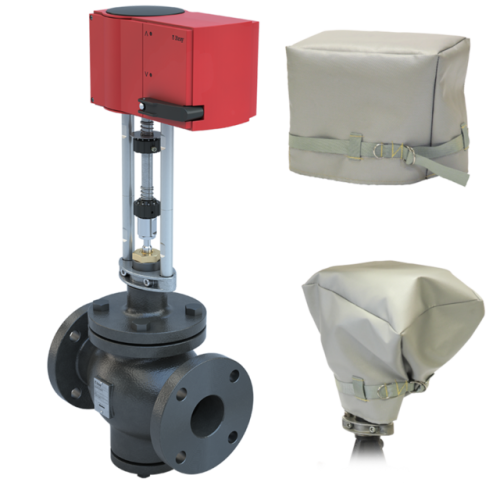

DG250-2-63SSC/GASEX24-450-A-HT-WS | 2.5" | Flanged Globe valve | 2way | Cast Iron body | Stainless steel | CV 100 | NC | NC | Linear Actuator 24VAC/DC Spring Return-down (EXTENDED) | SW | Bray

2.5 inch | Flanged Globe valve | 2way | Cast Iron body | Stainless steel trim for Steam application | CV 100 | Normally Closed | Normally Closed | Linear Actuator 24VAC/DC Spring Return-down (EXTENDED) | with Auxiliary Switch | Weather Sheild for GA450/562

Brand: BraySKU: DG250-2-63SSC/GASEX24-450-A-HT-WS

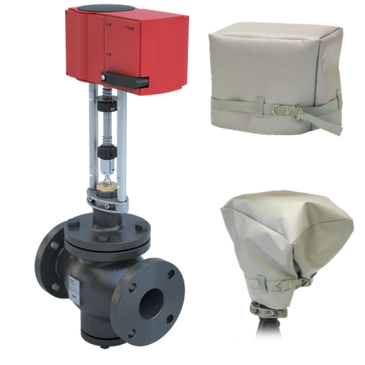

Bray | DG250-2-63SSC/GASEX24-450-A-HT-WS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DG250-2-63SSC/GASEX24-450-A-HT-WS

Overview Details for DG250-2-63SSC/GASEX24-450-A-HT-WS



Specifications

Product
DG250-2-63SSC/GASEX24-450-A-HT-WS
Valve Size
2.5"
2-Way / 3-Way
2-Way
Valve Product Type
Globe Valve
Valve Position
Normally Closed
Valve End Connection
ANSI Class 125 Flanged
Assembly Cv
63
Actuator Control Signal
On/Off;Floating;Modulating
Actuator Action
Spring Return
Fail Position
Fail Closed
Actuator Features
Time Out;Auxiliary Switches;Enclosed Terminal Strip
Actuator Power Supply
24 VAC
Actuator Conduit Connection
Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification
IP66
Actuator Stroke Time
Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm; Spring Run Time 15-30 Seconds
Close Off Pressure
69
Weight
76.6
