DG250-2-63SSC/GA24-562-A-HT-WS | 2.5" | Flanged Globe valve | 2way | Cast Iron body | Stainless steel trim for Steam application | CV 100 | NC | NC | Linear Actuator 24VAC/DC Non-Spring Return | with Auxiliary Switch | Bray

Brand: BraySKU: DG250-2-63SSC/GA24-562-A-HT-WS

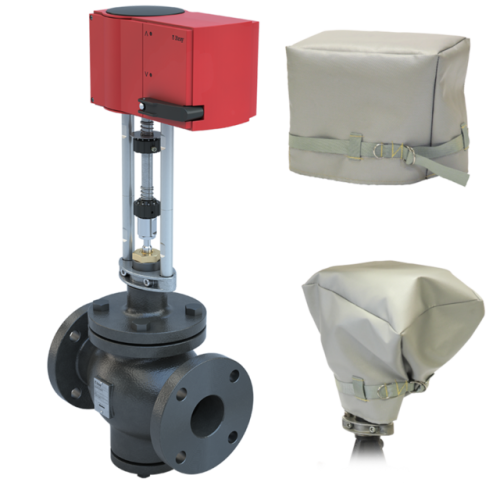

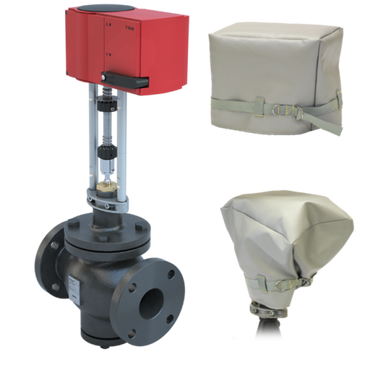

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for DG250-2-63SSC/GA24-562-A-HT-WS

Product: DG250-2-63SSC/GA24-562-A-HT-WS
Valve Size: 2.5"
2-Way / 3-Way: 2-Way
Valve Product Type: Globe Valve
Valve Position: Normally Closed
Valve End Connection: ANSI Class 125 Flanged
Assembly Cv: 63
Actuator Control Signal: On/Off;Floating;Modulating
Actuator Action: Non Spring Return
Fail Position: Fail Last
Actuator Features: Time Out;Auxiliary Switches;Enclosed Terminal Strip
Actuator Power Supply: 24 VAC
Actuator Conduit Connection: Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification: IP66
Actuator Stroke Time: Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm
Close Off Pressure: 86
Weight: 73.4
