Documents: DG250-2-63SSC/GA24-562

DG250-2-63SSC/GA24-562 | 2.5" | Flanged Globe valve | 2way | Cast Iron body | Stainless steel trim for Steam application | CV 100 | NC | NC | Pic and Globe Valve Linear Actuator 24VAC/DC Non-Spring Return | Bray

2.5 inch | Flanged Globe valve | 2way | Cast Iron body | Stainless steel trim for Steam application | CV 100 | Normally Closed | Normally Closed | Pic and Globe Valve Linear Actuator 24VAC/DC Non-Spring Return

Brand: BraySKU: DG250-2-63SSC/GA24-562
Bray | DG250-2-63SSC/GA24-562

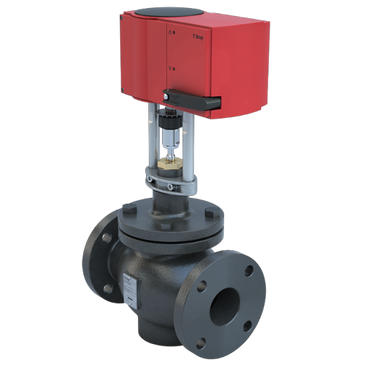

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DG250-2-63SSC/GA24-562

Overview Details for DG250-2-63SSC/GA24-562



Specifications

Product
DG250-2-63SSC/GA24-562
Valve Size
2.5"
2-Way / 3-Way
2-Way
Valve Product Type
Globe Valve
Valve Position
Normally Closed
Valve End Connection
ANSI Class 125 Flanged
Assembly Cv
63
Actuator Control Signal
On/Off;Floating;Modulating
Actuator Action
Non Spring Return
Fail Position
Fail Last
Actuator Features
Time Out;Enclosed Terminal Strip
Actuator Power Supply
24 VAC
Actuator Conduit Connection
Knock Out - M20×1.5 (2×) and M16×1.5
Actuator Area Classification
IP66
Actuator Stroke Time
Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm
Close Off Pressure
86
Weight
69.4
