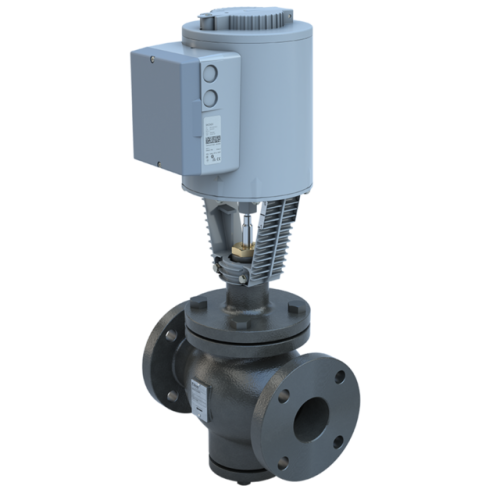

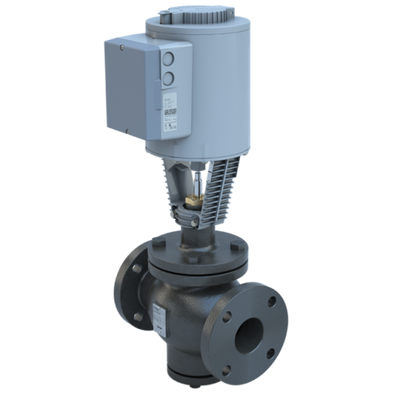

DG250-2-63/VAL-SRS07P | 2.5 Inch Flanged Globe Valve | 2 Way | 24 VAC/VDC Actuator | Bray

The Bray DG Series Globe Valves provide stable and accurate control of both water, 50/50 glycol and steam , in heat exchangers, fan coil units, VAV reheat coils, and air handling units up to 900 GPM. These globe valves feature rangability of greater than 100:1 to provide precise control. Two way standard trim valves provide an equal percentage flow characteristic for use with hot water and chilled water. Two way stainless trim valves are recommended for steam applications. 3-way mixing valves provide a linear flow characteristic.

All DG series globe valves feature a cartridge style packing, which is easily replaceable while the valve is in-line. Constant plug guiding and precision-machined metal to metal seating assures ANSI Class IV shutoff (.01%) which provides low leakage and efficient operation.

The Bray VAL series spring return electro hydraulic actuators provide precise modulating control of Bray DG Series Globe Valves. These actuators use electro hydraulic force to achieve superior close-off pressure ratings. The stroke of these actuators is up at the low input signal condition, and down in the high signal input condition.
