Documents: BVMS8-C150-1350/70-E301

BVMS8-C150-1350/70-E301 | 8" | Flanged segmented ball valve | CS | CV 1350 | Normally Open | 120 VAC | Two position | 3000 lb-in | NEMA 4 | Bray

8 inch | Flanged segmented ball valve | CS | CV 1350 | Normally Open | 120 VAC | Two position | 3000 lb-in | NEMA 4

Brand: BraySKU: BVMS8-C150-1350/70-E301

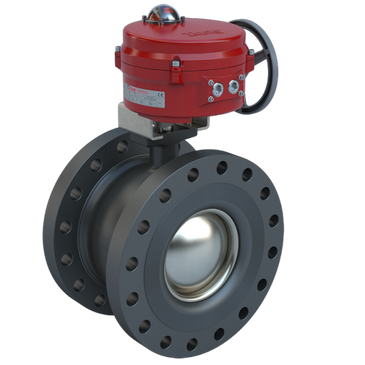

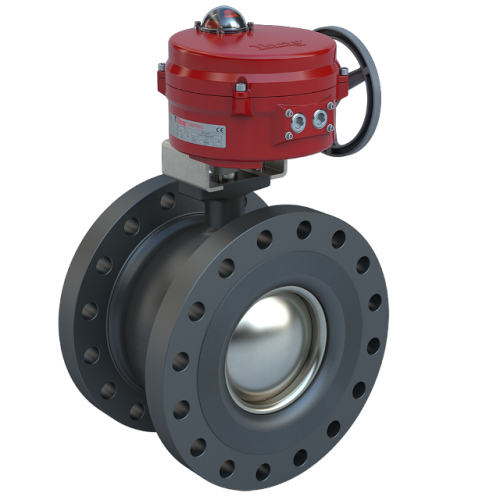

Bray | BVMS8-C150-1350/70-E301
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BVMS8-C150-1350/70-E301

Overview Details for BVMS8-C150-1350/70-E301



Specifications

Product
BVMS8-C150-1350/70-E301
Valve Size
8"
2-Way / 3-Way
2-Way
Valve Product Type
Ball Valve
Valve Position
Normally Open
Valve End Connection
ANSI Class 150 Raised Faced Flanged
Assembly Cv
1350
Actuator Control Signal
On/Off
Actuator Action
Non-Fail Safe
Fail Position
Fail Last
Actuator Features
Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
Actuator Power Supply
120 VAC
Actuator Conduit Connection
2 x 3/4" NPT
Actuator Area Classification
IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure
285
Weight
159
