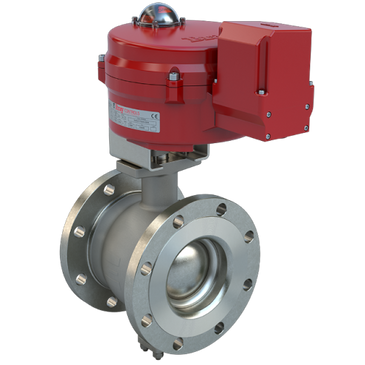

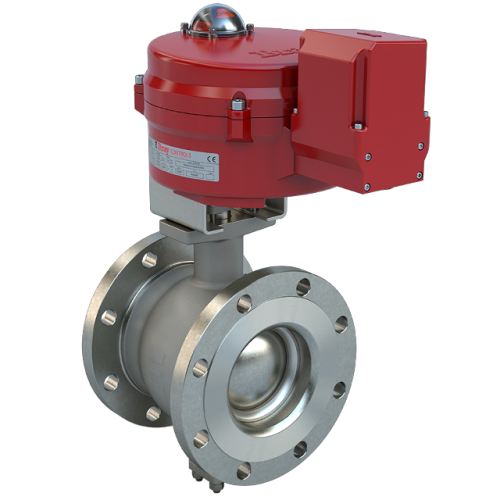

BVMS4-S150-0436/70-24-0201SVH-BBU | 4" | Flanged segmented ball valve | SS | CV 98 | Normally Open | 24 VAC/30VDC | Modulating | 2000 lb-in | NEMA 4 | Heater | & Battery Backup unit | Bray

Brand: BraySKU: BVMS4-S150-0436/70-24-0201SVH-BBU

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BVMS4-S150-0436/70-24-0201SVH-BBU

Product: BVMS4-S150-0436/70-24-0201SVH-BBU
Valve Size: 4"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: ANSI Class 150 Raised Faced Flanged
Assembly Cv: 98
Actuator Control Signal: Modulating
Actuator Action: Fail Safe
Fail Position: Fail Open
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Heater;Battery Back-Up Failsafe;Manual Override Handwheel
Actuator Power Supply: 24 VAC/30 VDC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 285
Weight: 78.9
