Documents: BVMS10-S150-2380/70-24-0501SV

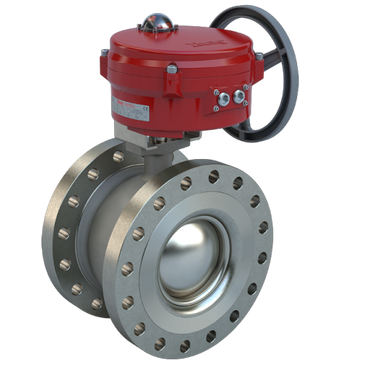

BVMS10-S150-2380/70-24-0501SV | 10" | Flanged segmented ball valve | SS | CV 571 | Normally Open | 24 VAC/DC | modulating | 5000 lb-in | NEMA 4 | Bray
10 inch | Flanged segmented ball valve | SS | CV 571 | Normally Open | 24 VAC/DC | modulating | 5000 lb-in | NEMA 4

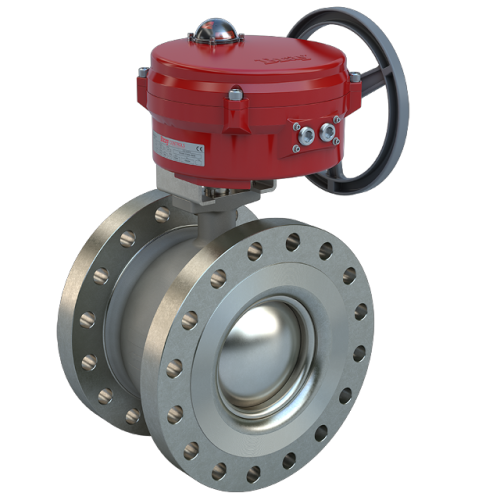

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BVMS10-S150-2380/70-24-0501SV
Overview Details for BVMS10-S150-2380/70-24-0501SV
Specifications
- Product
- BVMS10-S150-2380/70-24-0501SV
- Valve Size
- 10"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- ANSI Class 150 Raised Faced Flanged
- Assembly Cv
- 571
- Actuator Control Signal
- Modulating
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- IP65;IP67;NEMA 4;NEMA 4X
- Close Off Pressure
- 285
- Weight
- 239
