Documents: BV75-SS3-15C/DS120-180-A

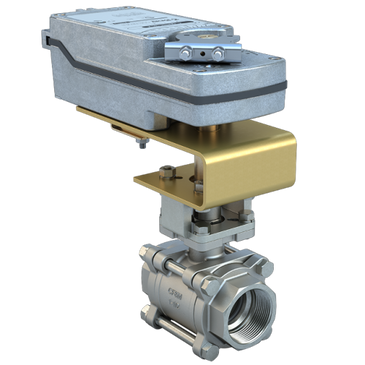

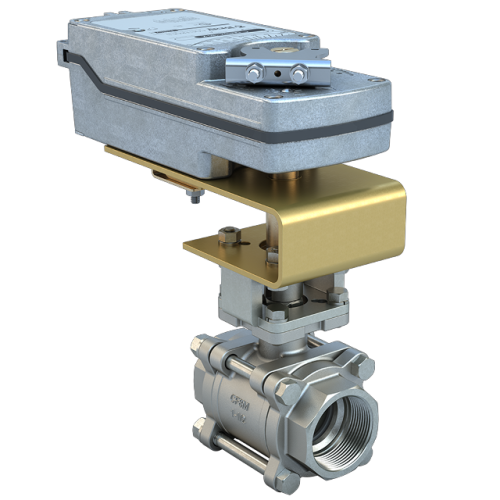

BV75-SS3-15C/DS120-180-A | 3/4" | 3 piece design threaded ball valve | SS | CV 19.37 | Normally Closed | Damper & Valve actuator | 120/240 Vac | 177 lb-in | on/off | Spring Return | SW | Bray
3/4 inch | 3 piece design threaded ball valve | SS | CV 19.37 | Normally Closed | Damper & Valve actuator | 120/240 Vac | 177 lb-in | on/off | Spring Return | SW
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV75-SS3-15C/DS120-180-A
Overview Details for BV75-SS3-15C/DS120-180-A
Specifications
- Product
- BV75-SS3-15C/DS120-180-A
- Valve Size
- 3/4"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Closed
- Valve End Connection
- NPT Threaded
- Assembly Cv
- 19.37
- Actuator Control Signal
- On/Off
- Actuator Action
- Spring Return
- Fail Position
- Fail Closed
- Actuator Features
- Auxiliary Switches
- Actuator Power Supply
- 120/240 VAC
- Actuator Conduit Connection
- 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
- Actuator Area Classification
- IP54;NEMA 2
- Close Off Pressure
- 300
- Weight
- 14.9
