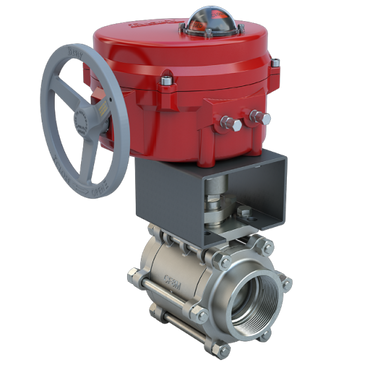

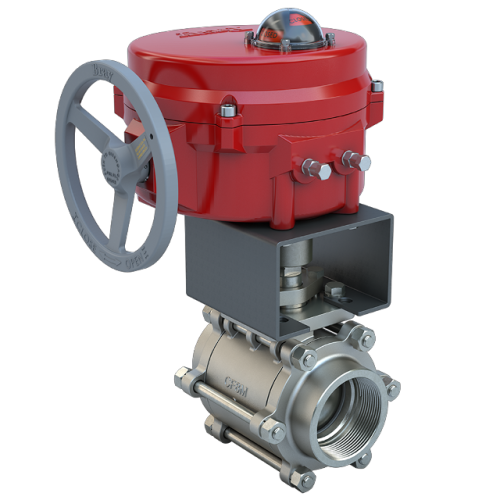

BV3-SS3-32/70-24-0201SV | 3" | 3 piece design threaded ball valve | SS | CV 13.42 | Normally Open | 24 VAC/DC | modulating | 2000 lb-in | NEMA 4 | Bray

Brand: BraySKU: BV3-SS3-32/70-24-0201SV

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BV3-SS3-32/70-24-0201SV

Product: BV3-SS3-32/70-24-0201SV
Valve Size: 3"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 13.42
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 300
Weight: 74.6
