Documents: BV3-SS3-150/70-0121SV
BV3-SS3-150/70-0121SV | 3" | 3 piece design threaded ball valve | SS | CV 46.32 | Normally Open | 120 VAC | modulating | 1200 lb-in | NEMA 4 | Bray
3 inch | 3 piece design threaded ball valve | SS | CV 46.32 | Normally Open | 120 VAC | modulating | 1200 lb-in | NEMA 4

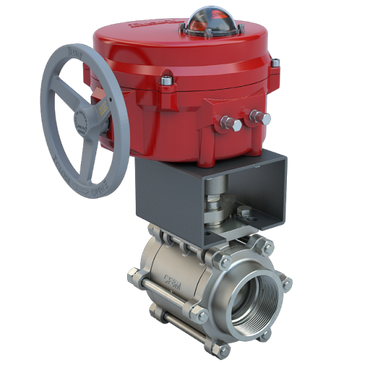

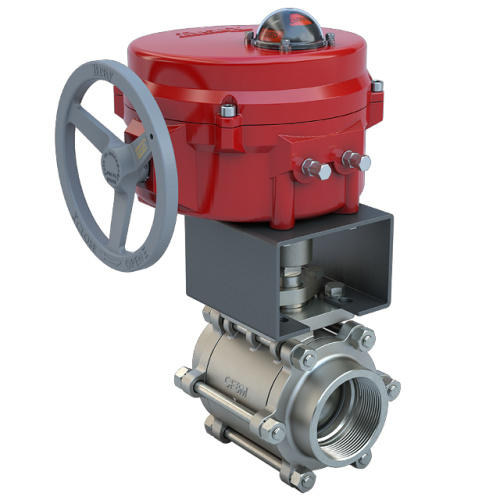

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV3-SS3-150/70-0121SV
Overview Details for BV3-SS3-150/70-0121SV
Specifications
- Product
- BV3-SS3-150/70-0121SV
- Valve Size
- 3"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- NPT Threaded
- Assembly Cv
- 46.32
- Actuator Control Signal
- Modulating
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
- Actuator Power Supply
- 120 VAC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- IP65;IP67;NEMA 4;NEMA 4X
- Close Off Pressure
- 300
- Weight
- 74.6
