BV2-SS3-130/70-24-0081H-BBU | 2" | 3 piece design threaded ball valve | SS | CV 167.34 | Normally Open | 24 VAC/30VDC | Two position | 800 lb-in | NEMA 4 | Heater | & Battery Backup unit | Bray

Brand: BraySKU: BV2-SS3-130/70-24-0081H-BBU

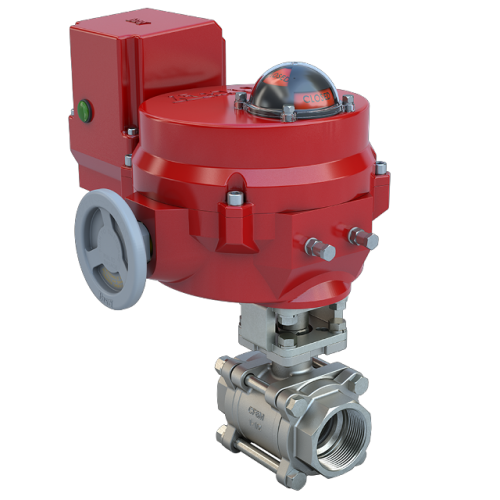

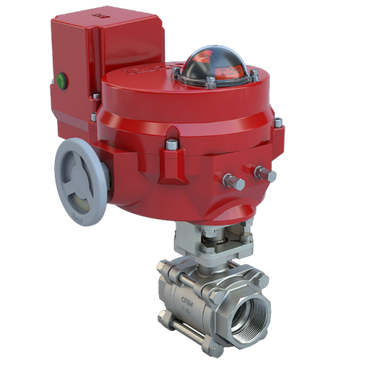

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BV2-SS3-130/70-24-0081H-BBU

Product: BV2-SS3-130/70-24-0081H-BBU
Valve Size: 2"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 167.34
Actuator Control Signal: On/Off
Actuator Action: Fail Safe
Fail Position: Fail Open
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Heater;Battery Back-Up Failsafe;Manual Override Handwheel
Actuator Power Supply: 24 VAC/30 VDC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 300
Weight: 37.1
