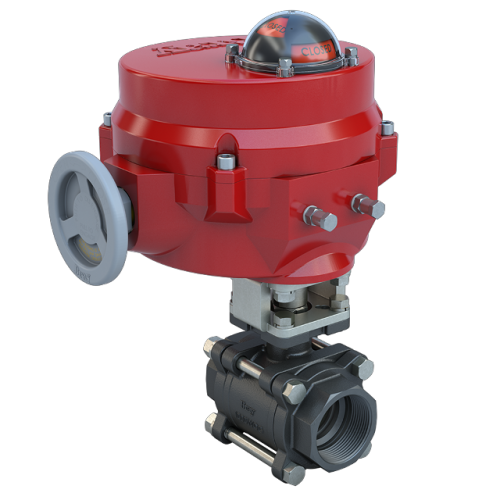

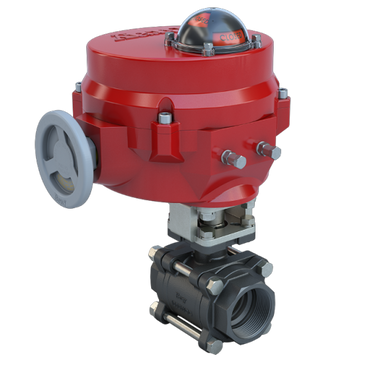

BV150-CS3-71/70-0081SV | 1.5" | 3 piece design threaded ball valve | CS | CV 22.6 | Normally Open | 120 VAC | modulating | 800 lb-in | NEMA 4 | Bray

Brand: BraySKU: BV150-CS3-71/70-0081SV

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BV150-CS3-71/70-0081SV

Product: BV150-CS3-71/70-0081SV
Valve Size: 1-1/2"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 22.6
Actuator Control Signal: Modulating
Actuator Action: Non-Fail Safe
Fail Position: Fail Last
Actuator Features: Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
Actuator Power Supply: 120 VAC
Actuator Conduit Connection: 2 x 3/4" NPT
Actuator Area Classification: IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure: 300
Weight: 27.6
