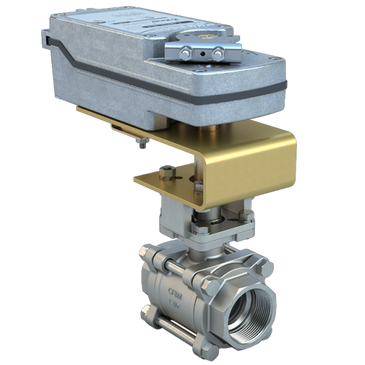

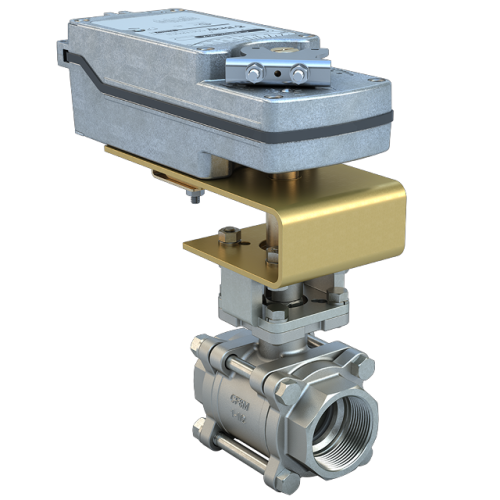

BV1-SS3-23/DS120-180 | 1" | 3 piece design threaded ball valve | SS | CV 32.81 | Normally Open | Damper & Valve actuator | 120/240 Vac | 177 lb-in | on/off | Spring Return | Bray

Brand: BraySKU: BV1-SS3-23/DS120-180

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BV1-SS3-23/DS120-180

Product: BV1-SS3-23/DS120-180
Valve Size: 1"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Open
Valve End Connection: NPT Threaded
Assembly Cv: 32.81
Actuator Control Signal: On/Off
Actuator Action: Spring Return
Fail Position: Fail Open
Actuator Power Supply: 120/240 VAC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 300
Weight: 16
