Documents: BV1-SS3-23/70-24-0081SV

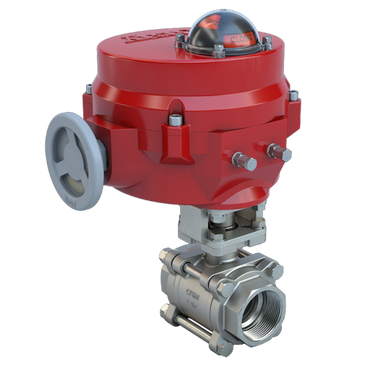

BV1-SS3-23/70-24-0081SV | 1" | 3 piece design threaded ball valve | SS | CV 8 | Normally Open | 24 VAC/DC | modulating | 800 lb-in | NEMA 4 | Bray
1 inch | 3 piece design threaded ball valve | SS | CV 8 | Normally Open | 24 VAC/DC | modulating | 800 lb-in | NEMA 4

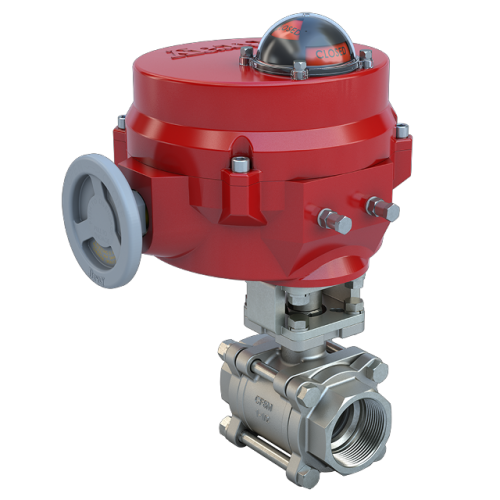

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV1-SS3-23/70-24-0081SV
Overview Details for BV1-SS3-23/70-24-0081SV
Specifications
- Product
- BV1-SS3-23/70-24-0081SV
- Valve Size
- 1"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Open
- Valve End Connection
- NPT Threaded
- Assembly Cv
- 8
- Actuator Control Signal
- Modulating
- Actuator Action
- Non-Fail Safe
- Fail Position
- Fail Last
- Actuator Features
- Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 2 x 3/4" NPT
- Actuator Area Classification
- IP65;IP67;NEMA 4;NEMA 4X
- Close Off Pressure
- 300
- Weight
- 21.4
