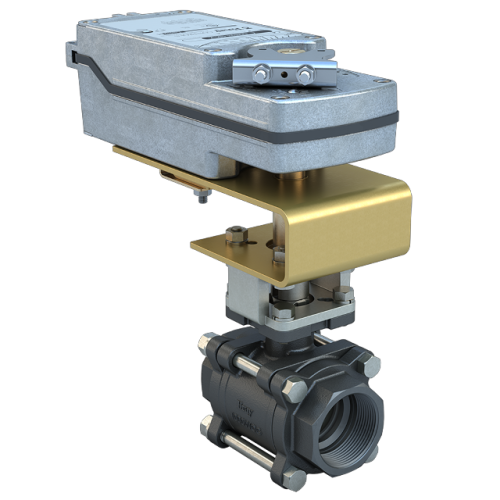

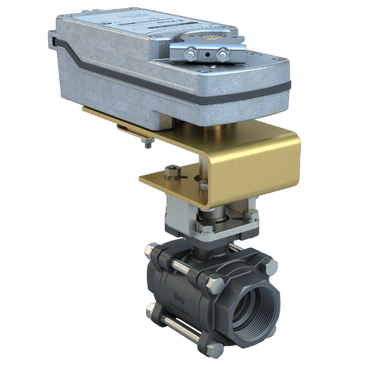

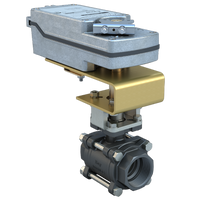

BV1-CS3-09C/DS24-180-TA | 1" | 3 piece design threaded ball valve | CS | CV 9.84 | Normally Closed | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | SW | Bray

Brand: BraySKU: BV1-CS3-09C/DS24-180-TA

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for BV1-CS3-09C/DS24-180-TA

Product: BV1-CS3-09C/DS24-180-TA
Valve Size: 1"
2-Way / 3-Way: 2-Way
Valve Product Type: Ball Valve
Valve Position: Normally Closed
Valve End Connection: NPT Threaded
Assembly Cv: 9.84
Actuator Control Signal: On/Off;Floating
Actuator Action: Spring Return
Fail Position: Fail Closed
Actuator Features: Auxiliary Switches
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 300
Weight: 14.8
