Documents: BV05-SS3-05/70-24-0081

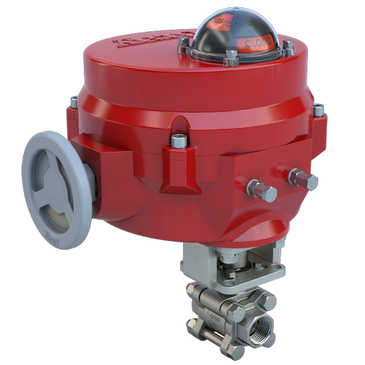

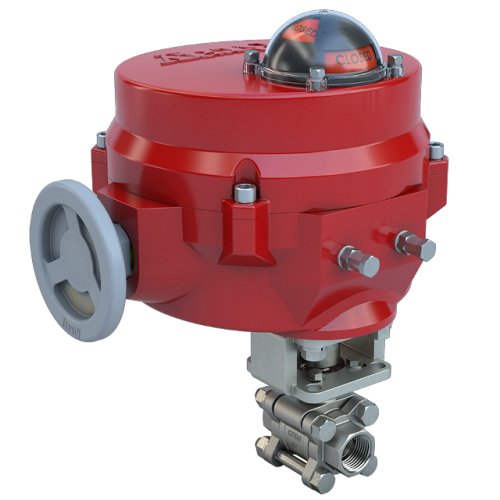

BV05-SS3-05/70-24-0081 | 1/2" | 3 piece design threaded ball valve | SS | CV 5.55 | Normally Open | 24 VAC/DC | Two position | 800 lb-in | NEMA 4 | Bray

1/2 inch | 3 piece design threaded ball valve | SS | CV 5.55 | Normally Open | 24 VAC/DC | Two position | 800 lb-in | NEMA 4

Brand: BraySKU: BV05-SS3-05/70-24-0081
Bray | BV05-SS3-05/70-24-0081
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV05-SS3-05/70-24-0081

Overview Details for BV05-SS3-05/70-24-0081



Specifications

Product
BV05-SS3-05/70-24-0081
Valve Size
1/2"
2-Way / 3-Way
2-Way
Valve Product Type
Ball Valve
Valve Position
Normally Open
Valve End Connection
NPT Threaded
Assembly Cv
5.55
Actuator Control Signal
On/Off
Actuator Action
Non-Fail Safe
Fail Position
Fail Last
Actuator Features
Auxiliary Switches;Enclosed Terminal Strip;Manual Override Handwheel
Actuator Power Supply
24 VAC/DC
Actuator Conduit Connection
2 x 3/4" NPT
Actuator Area Classification
IP65;IP67;NEMA 4;NEMA 4X
Close Off Pressure
300
Weight
19.8
