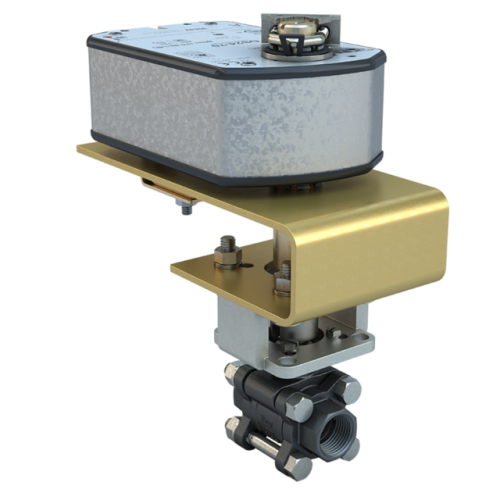

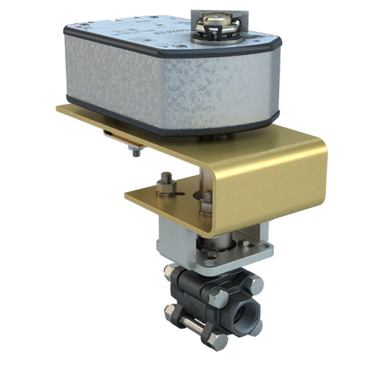

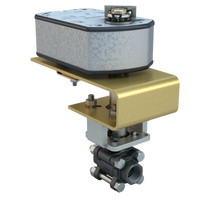

BV05-CS3-05C/DS24-70-T | 1/2" | 3 piece design threaded ball valve | CS | CV 5.55 | Normally Closed | Damper & Valve actuator | 24 VAC/DC | 70 lb-in | on/off or floating | Spring Return | Bray
1/2 inch | 3 piece design threaded ball valve | CS | CV 5.55 | Normally Closed | Damper & Valve actuator | 24 VAC/DC | 70 lb-in | on/off or floating | Spring Return
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BV05-CS3-05C/DS24-70-T
Documents and manuals
Bray BV05-CS3-05C/DS24-70-T Documents
Overview
Details for BV05-CS3-05C/DS24-70-T
Specifications
- Product
- BV05-CS3-05C/DS24-70-T
- Valve Size
- 1/2"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Ball Valve
- Valve Position
- Normally Closed
- Valve End Connection
- NPT Threaded
- Assembly Cv
- 5.55
- Actuator Control Signal
- On/Off;Floating
- Actuator Action
- Spring Return
- Fail Position
- Fail Closed
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
- Actuator Area Classification
- IP54;NEMA 2
- Close Off Pressure
- 300
- Weight
- 10.23
