Documents: 70-0081H

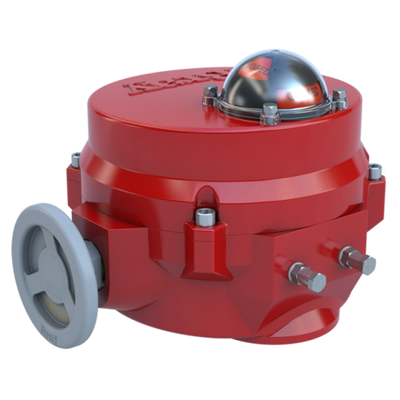

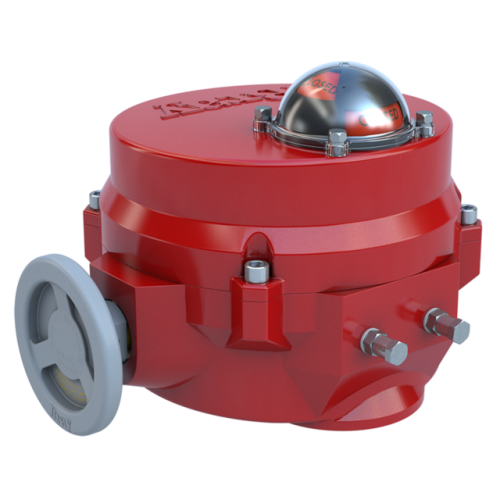

70-0081H | 120 VAC Industrial Actuator | On/Off | 800 In-Lbs | Bray
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 70-0081H
Overview Details for 70-0081H
120 VAC Industrial Actuator | On/Off | 800 In-Lbs
Description:
Bray 70-0081H Industrial Actuator Features:
- 120 VAC.
- 2 position.
- On/Off.
- On/Off.
- 800 In-Lbs.
- NEMA 4 enclosure.
- High visibility beacon position indicator.
- Manual declutchable override hand wheel, pull to engage, push to disengage.
- 5 watt PTC style heater.
- Auxiliary switch.
- ASTM B85 pressure die cast aluminum housing with polyester powder coat.
- Stainless steel exposed fasteners.
- 2 conduit connections.
The Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.
There is no better choice for building automation!
- Actuator Power:120V
Specifications
- Product
- 70-0081H
- Actuator Control Signal
- On/Off
- Actuator Action
- Non-Fail Safe
- Actuator Features
- Auxiliary Switches | Enclosed Terminal Strip | Heater | Manual Override Handwheel
- Actuator Power Supply
- 120 VAC
- Area Classification
- IP65 | IP67 | NEMA 4 | NEMA 4X
- Torque Imperial
- 800
- Conduit Connection
- 2 x 3/4" NPT
- Weight Lbs
- 13
