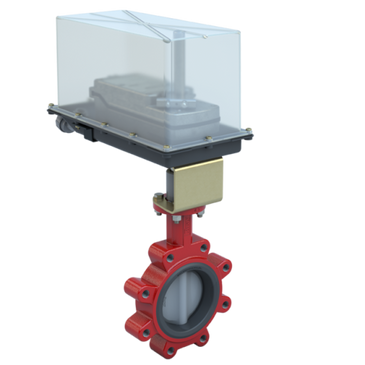

3LSE-04L2N/DMS24-180-WS | 4" Lugged Butterfly Valve Resilient | ANSI Class 125/150 | DI body | SS Disc | CV 310 | Normally Open | Damper & Valve actuator | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | Bray

Brand: BraySKU: 3LSE-04L2N/DMS24-180-WS

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3LSE-04L2N/DMS24-180-WS

Product: 3LSE-04L2N/DMS24-180-WS
Valve Size: 4"
2-Way / 3-Way: 2-Way
Valve Product Type: Butterfly Valve
Valve Position: Normally Open
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 310
Actuator Control Signal: Modulating
Actuator Action: Spring Return
Fail Position: Fail Open
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 50
Weight: 30.4
