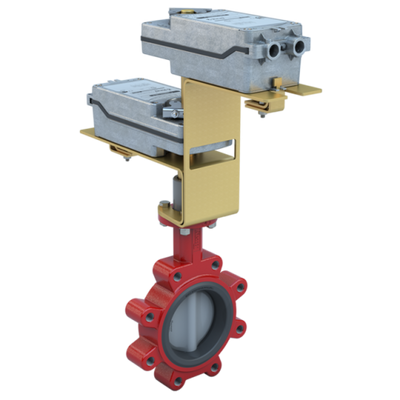

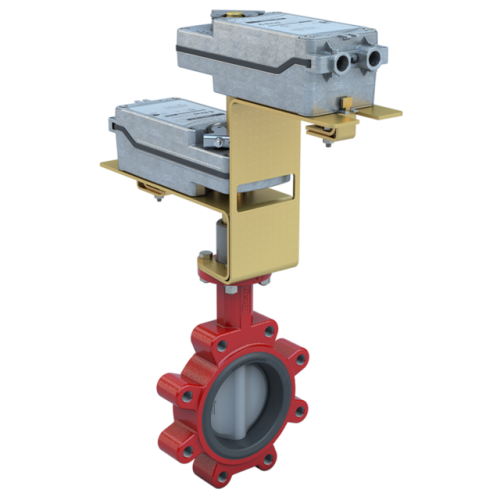

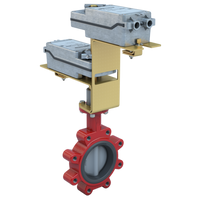

3LNE-05L2C/DS24-180-T-D | 5" Lugged Butterfly Valve Resilient | ANSI Class 125/150 | DI body | NDI Disc | CV 1218 | Normally Closed | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | Dual | Bray
5 inch Lugged Butterfly Valve Resilient Seated | ANSI Class 125/150 | DI body | NDI Disc | CV 1218 | Normally Closed | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off or floating | Spring Return | Dual
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3LNE-05L2C/DS24-180-T-D
Documents and manuals
Bray 3LNE-05L2C/DS24-180-T-D Documents
Overview
Details for 3LNE-05L2C/DS24-180-T-D
Specifications
- Product
- 3LNE-05L2C/DS24-180-T-D
- Valve Size
- 5"
- 2-Way / 3-Way
- 2-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Normally Closed
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 1218
- Actuator Control Signal
- On/Off;Floating
- Actuator Action
- Spring Return
- Fail Position
- Fail Closed
- Actuator Features
- Dual Mounted
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
- Actuator Area Classification
- IP54;NEMA 2
- Close Off Pressure
- 50
- Weight
- 37.8
