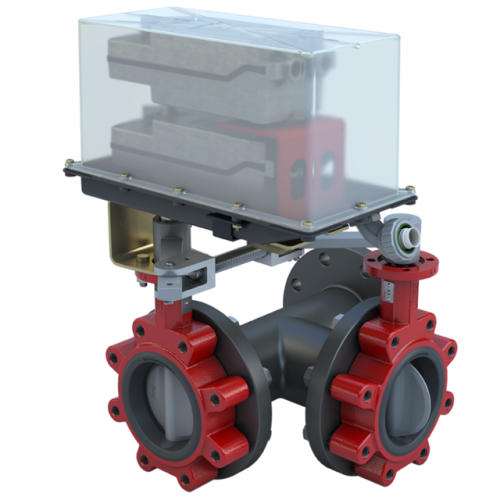

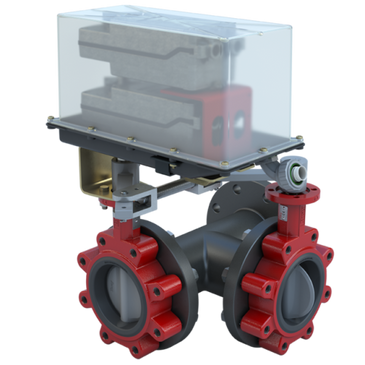

3LNE-04S39/DS24-180-D-WS | 4" 3-Way Lugged Butterfly Valve Resilient | ANSI Class 125/150 | DI body | NDI Disc | CV 740 | Damper & Valve actuator | 24 VAC/DC | 177 lb-in | on/off | Spring Return | Dual | Bray

Brand: BraySKU: 3LNE-04S39/DS24-180-D-WS

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3LNE-04S39/DS24-180-D-WS

Product: 3LNE-04S39/DS24-180-D-WS
Valve Size: 4"
2-Way / 3-Way: 3-Way
Valve Product Type: Butterfly Valve
Valve Position: Master N.O. Branch/Slave N.C. Left (9)
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 740
Actuator Control Signal: On/Off
Actuator Action: Spring Return
Fail Position: Fail Open Branch to Right
Actuator Features: Dual Mounted
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 175
Weight: 121
