Documents: 3LNE-03S36/DC24-310-TA

More Info

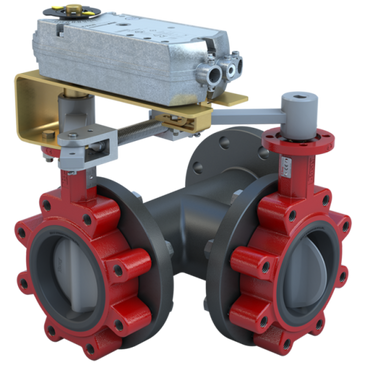

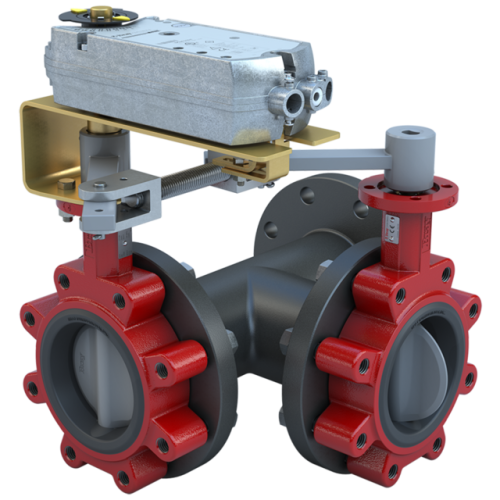

3LNE-03S36/DC24-310-TA | 3" 3-Way Lugged Butterfly Valve Resilient | ANSI Class 125/150 | DI body | NDI Disc | CV 360 | Damper & Valve actuator | 24 Vac | 310 lb-in | floating | Non-Spring Return | SW | Time out | Bray

Brand: BraySKU: 3LNE-03S36/DC24-310-TA

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3LNE-03S36/DC24-310-TA

Jump to: Overview & Specifications Reviews

Overview Details for 3LNE-03S36/DC24-310-TA

Specifications

Product: 3LNE-03S36/DC24-310-TA
Valve Size: 3"
2-Way / 3-Way: 3-Way
Valve Product Type: Butterfly Valve
Valve Position: Master N.C. Right/Slave N.O. Left (6)
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 360
Actuator Control Signal: Floating
Actuator Action: Non Spring Return
Fail Position: Fail Last
Actuator Features: Time Out;Auxiliary Switches
Actuator Power Supply: 24 VAC
Actuator Conduit Connection: 3/8" Flex
Actuator Area Classification: IP54
Close Off Pressure: 175
Weight: 71.4
