2220 | Economy Universal Programmable Thermostat 2H / 2C | Braeburn
Overview
Details for 2220

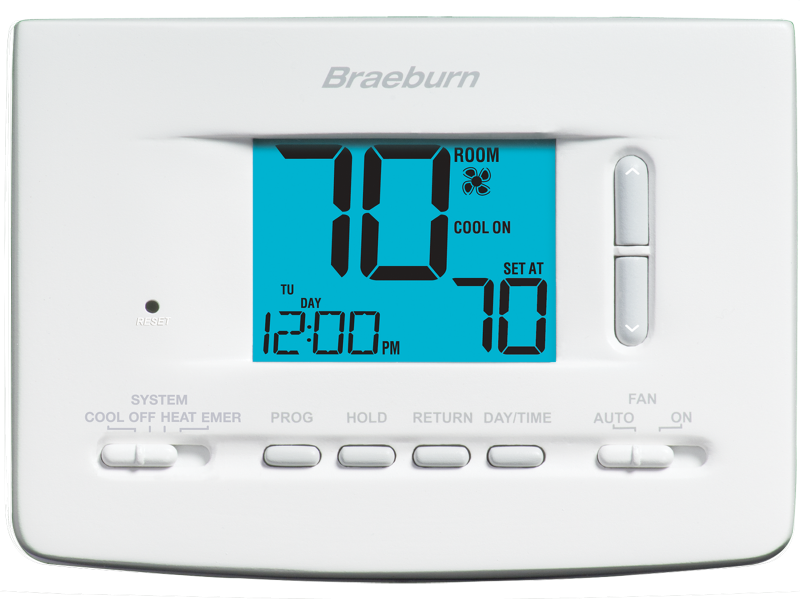

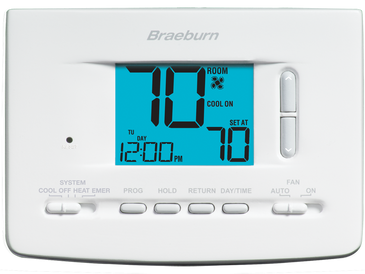

Economy Universal Programmable Thermostat 2H / 2C
Features
- 5-2 Day, 7 Day or Non-Programmable
- Large 3 Sq. In. Display with Bright Blue Backlight
- Adjustable Temperature Limits
- Hardwire or Battery Powered
- SpeedSet® Programming Mode
- Permanent Memory Retains User Settings
- Filter Check Monitor
- Adjustable Temperature Differentials
- Adaptive Recovery Mode (ARM )
- Meets Energy Aware® Guidelines*
- ESD Guard Electronic Circuitry
- Compressor Short Cycle Protection
- Temporary Program Override
- Programmable Extended Hold Mode
- Front Access Reset Button
- F˚ / C˚ Switch
- Trilingual Packaging and Instruction Card with FREE Contractor Branding
Architectural Specifications
The digital programmable thermostat shall be a Braeburn®, model number 2220, 3.70” high x 5.16” wide x 1.38” deep, powered independently with either 24 Volt AC or with two “AA” alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with multi-stage conventional systems up to two stages of heating and two stages of cooling or heat pump systems with up to two stages of heating and one stage of cooling. The thermostat shall have a bright blue backlight display and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain user settings, adjustable temperature limits, filter check monitor, adaptive recovery mode (ARM™), separate heating and cooling set point program times and temperatures, and auxiliary heat indicator. Thermostat shall have low battery indication and a front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box. Meets Energy Aware® Guidelines.
Specifications
Item Number | 2220 |
Brand | Braeburn |
Thermostat | Heat Only |
