2200NC | Builder Value 5-2 Day Programmable Thermostat 2H / 1C Pack of 12 | Braeburn (OBSOLETE)
Overview
Details for 2200NC

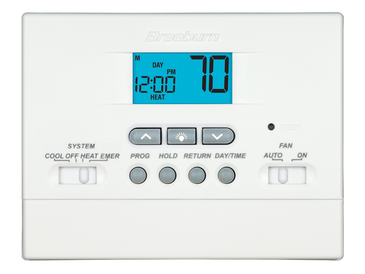

Builder Value 5-2 Day Programmable Thermostat 2H / 1C
Features
- 5-2 Day Separate Weekend / Weekday Programming
- Bright Blue Display Backlight
- Adjustable Temperature Limits
- Hardwire or Battery Powered
- Permanent Memory Retains Settings
- Filter Check Monitor
- Adjustable Temperature Differentials
- Adaptive Recovery Mode (ARM )
- F˚ / C˚ Switch
- Meets Energy Aware® Guidelines*
- Low Battery Indicator
- Separate O & B Terminals
- Auxiliary Heat Status Indicator
- ESD Guard Electronic Circuitry
- Compressor Short Cycle Protection
- Temporary Program Override
- Programmable Extended Hold Mode
- Front Access Reset Button
- Mounts to Horizontal Box
Architectural Specifications
The digital programmable thermostat shall be a Braeburn® model number 2200NC, 3.72” high x 4.75” wide x 1.12” deep, powered independently with either 24 Volt AC or with two “AA” alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with multi-stage conventional or heat pump systems with up to two stages of heating and one stage of cooling. The thermostat shall have a bright blue backlight display, front loading battery door and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain all user and program settings, adjustable temperature limits, filter check monitor, adaptive recovery mode (ARM™), separate heating and cooling set point program times and temperatures, and auxiliary heat indicator. Thermostat shall have low battery indication and a front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box. Meets Energy Aware® Guidelines.
Specifications
Item Number | 2200NC |
Brand | Braeburn |
Thermostat | Heat Only |
