1200NC | Builder Value Non-Programmable Thermostat 2H / 1C | Braeburn (OBSOLETE)

Braeburn | 1200NC

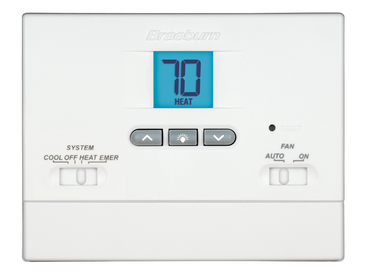

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1200NC

Documents and manuals

Braeburn 1200NC Documents

Overview

Details for 1200NC

DISCONTINUED AND REPLACED WITH 1220NC

Builder Value Non-Programmable Thermostat 2H / 1C

Features

  • Bright Blue Display Backlight
  • Adjustable Temperature Limits
  • Hardwire or Battery Powered
  • Permanent Memory Retains All Settings
  • Compressor Short Cycle Protection
  • Separate O & B Terminals
  • Adjustable Temperature Differentials
  • Low Battery Indication
  • Separate Heating and Cooling Set Point Temperatures • Auxiliary Heat Indicator
  • ESD Guard Electronic Circuitry
  • Front Access Reset Button
  • F˚ / C˚ Switch
  • Mount to Horizontal Box

Architectural Specifications

The digital non-programmable thermostat shall be a Braeburn® model number 1200NC, 3.72” high x 4.75” wide x 1.12” deep, powered independently with either 24 VAC or two “AA” Alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with multi-stage conventional or heat pump systems with up to two stages of heating and one stage of cooling. The thermostat shall have a bright blue backlight display, front loading battery door and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain user settings, adjustable temperature limits and auxiliary heat indicator. Thermostat shall have low battery indication and a front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box.

Specifications

Item Number 1200NC
Brand Braeburn
Thermostat Heat Only
