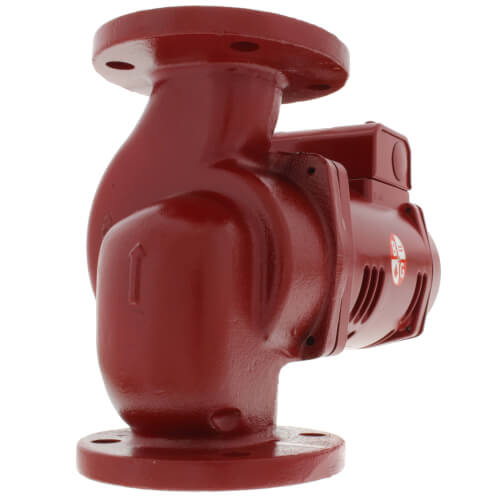

1BL063 | PL-130/2", 2/5 HP Cast Iron Booster Pump | Bell & Gossett
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1BL063
Documents and manuals
Bell & Gossett 1BL063 Documents
Overview
Details for 1BL063
PL-130/2", 2/5 HP Cast Iron Booster Pump
The Series PL close coupled booster pumps arespecifically designed for quiet operation in hydronic,radiant and geothermal heating and coolingsystems. These inline permanently lubricated pumps areavailable in cast iron or lead-free bronze bodyconstruction.Features:
- B&G's powerful, dry-motor design delivers exceptional performance
- 25% more efficient than competition
- Precision-machined and balanced alloy steel rotor for superior performance. Series-PL
- Solid "Stiff-Shaft" design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses.
- XL-11 Precision-Crafted Bearing System
- Permanently oil lubricated
- Completely maintenance free
- Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
- Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
- Double sided stainless steel neck ring for optimum efficiency
Specifications
Item Number | 1BL063 |
Brand | Bell & Gossett |
Amperage | 4.8 |
Application | Heating |
Connection Size | 2" |
Connection Type | Flanged x Flanged |
Flow Range (GPM) | 0-130 |
Head Range (ft.) | 0-20 |
Hertz | 60 |
Horse Power | 2/5 |
Material | Cast Iron |
Max Flow (GPM) | 130 |
Max Head (Ft) | 20 |
Max Pressure (PSI) | 150 |
Max Temp (F) | 225°F |
Phase | 1 |
Pump Type | Cast Iron Pumps |
Pump Type | Circulator Pumps |
RPM | 3200 |
Series | PL Series Cast Iron Booster Pumps |
Type | Booster Pump |
Type | Circulator |
Type | Pump |
Voltage | 115v |
