106507 | 1/20 HP, LR-20 WR Little Red Pump | Bell & Gossett

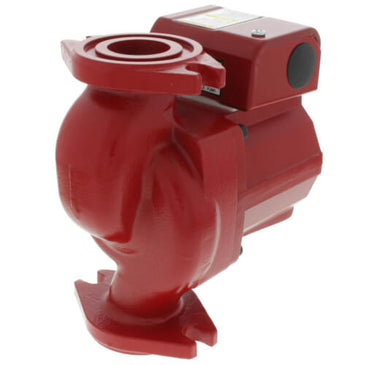

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 106507

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 106507 Documents

Datasheet Catalog PartS & Accessories Installation Instructions

Overview

Details for 106507

1/20 HP, LR-20 WR Little Red Pump

Bell & Gossett Little Red Pump - 1/15 HP Single Phase, 111 V
The Series LR is a flanged in-line system lubricated circulating pump designed specifically for quiet operation in closed loop systems.

Specifications

Item Number	106507
Brand	Bell & Gossett
Amperage	1.1
Application	Heating
Connection Size	1-1/2"
Connection Type	Flanged x Flanged
Family	CIRCULATOR PUMPS
Flow Range (GPM)	0-36
Head Range (ft.)	0-12
Hertz	60
Horse Power	1/20
HP	1/15
Material	Cast Iron
Max Flow (GPM)	36
Max Head (Ft)	12
Max Pressure (PSI)	150
Max Temp (F)	225°F
Phase	1
Pump Type	Cast Iron Pumps
Pump Type	Circulator Pumps
RPM	2950
Series	LR Series Cast Iron Booster Pumps
Type	Pump
Voltage	115v
