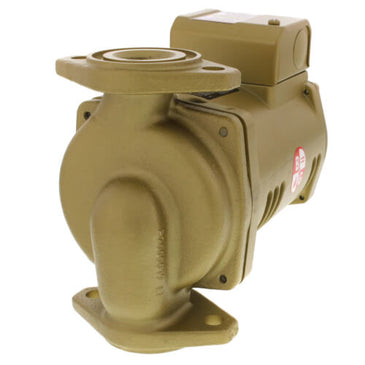

1BL013LF | PL-30B, 1/12 HP Bronze Booster Pump (Lead Free) | Bell & Gossett

Brand: Bell & GossettSKU: 1BL013LF

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1BL013LF

Jump to: Overview & Specifications Reviews

Overview Details for 1BL013LF

PL-30B, 1/12 HP Bronze Booster Pump (Lead Free)

The Series PL close coupled booster pumps arespecifically designed for quiet operation in hydronic,radiant and geothermal heating and coolingsystems.

Features:

B&G's powerful, dry-motor design delivers exceptional performance
25% more efficient than competition
Precision-machined and balanced alloy steel rotor for superior performance. Series-PL
Solid "Stiff-Shaft" design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses.
XL-11 Precision-Crafted Bearing System
Permanently oil lubricated
Completely maintenance free
Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
Double sided stainless steel neck ring for optimum efficiency

Specifications

Item Number	1BL013LF
Brand	Bell & Gossett
Amperage	1.4
Application	Heating
Connection Size	1-1/2"
Connection Type	Flanged x Flanged
Flow Range (GPM)	0-30
Head Range (ft.)	0-25
Hertz	60
Horse Power	1/12
Material	Bronze
Max Flow (GPM)	30
Max Head (Ft)	25
Max Pressure (PSI)	150
Max Temp (F)	225°F
Phase	1
Pump Type	Bronze Pumps
Pump Type	Circulator Pumps
RPM	2650
Series	PL Series Bronze Booster Pumps
Type	Booster Pump
Type	Circulator
Type	Pump
Voltage	115v
