110193LF | FB-38TU 1/2" Pressure Reducing Valve (MNPT Union & Sweat Union Combination Connection, LF) | Bell & Gossett

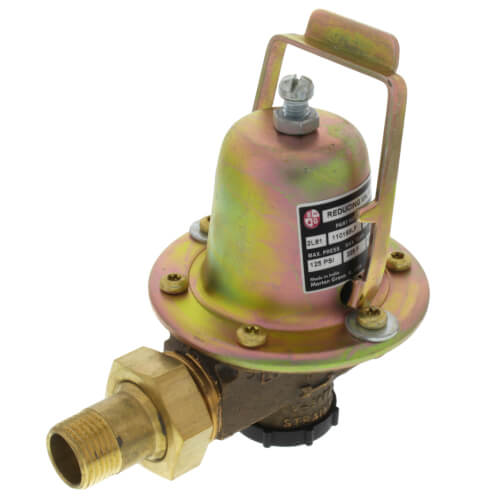

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 110193LF
Documents and manuals
Bell & Gossett 110193LF Documents
Overview
Details for 110193LF
FB-38TU 1/2" Pressure Reducing Valve (MNPT Union & Sweat Union Combination Connection, LF)
Please note: Tail piece for union models is combination - 1/2" copper sweat and1/2" male NPT.Operating Data
- Maximum operating temperature 225 degrees F (107 degrees C).
- Maximum operating pressure 125 PSIG (862 kPa)
Features
- Reducing valves fill the system to a preset pressure for optimum performance. Combination Dual Unit Valves include pressure reducing valve and relief valve.
- Fast fill feature reduces start-up time and labor.
- Low inlet pressure check valve help prevent loss of system pressure if the supply water drops below system pressure.
- Union connection available with 1/2" male NPT thread and 1/2" female sweat tail-piece for fast, flexible system connection.
- Brass body construction is highly resistant to corrosion-ideal for water systems.
Applications
- For residential applications.
Specifications
Item Number | 110193LF |
Brand | Bell & Gossett |
Application | Heating |
Connection Type | C Union x FNPT |
Inlet Type | Sweat |
Lead Free | Yes |
Material | Brass |
Max Inlet Pressure | 125 PSI |
Max Pressure (PSIG) | 25 |
Min Pressure (PSIG) | 10 |
Outlet Type | FNPT |
Pressure Set Point | 12 psig |
Size | 1/2" |
SubType | Boiler Fill Valve |
SubType | Pressure Reducing Valve |
Temperature Range (F) | 225°F Max |
Type | Pressure Valve |
