107038 | 1-1/4" NPT Bronze HydroTrol Flow Control Valve | Bell & Gossett (OBSOLETE)

Brand: Bell & GossettSKU: 107038

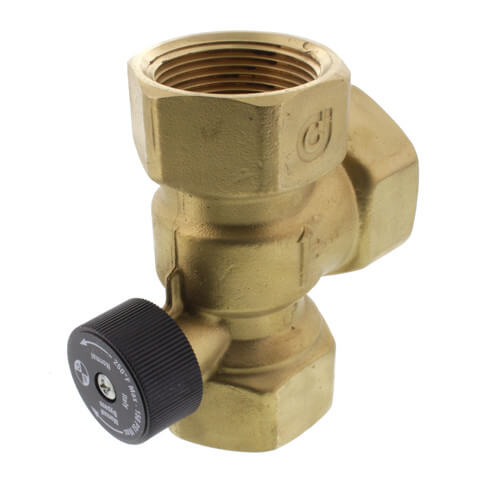

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 107038

Jump to: Overview & Specifications Reviews

Overview Details for 107038

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

1-1/4" NPT Bronze HydroTrol Flow Control Valve

Note: Do not use this item for any installation or repair of potable water applications. This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.

The HT valve can be installed in either the horizontal orvertical orientation.

Applications

The Hydrotrol (HT) flow control valve is used to prevent overheating of zones due to gravity flow in hydronic heating systems and will permit summer-winter operation of indirect water heater.

Operating Data

Maximum working pressure: 150 psi (10 bar)
Maximum operating temperature: 250¼F (121¼C)

Features

Prevents rooms (zones) from overheating due to gravity circulation.
Elastomer seal provides positive, shutoff eliminating the need for an isolation valve.
Brass body and non-ferrous internals.
Straight-Angle configuration allows for quick and easy installation.
Vertical design option saves installation time and material.
+ turn knob for system draining or valve bypass.
Compact, light weight design.

Specifications

Item Number	107038
Brand	Bell & Gossett
Application	Heating
Connection Method	Threaded
Connection Type	FNPT x FNPT
Material	Brass
Max Pressure (PSI)	150
Position	Vertical
Size	1-1/4"
SubType	Flow Control Valves
Temperature Range (F)	250°F Max
Type	Valve
