Details for 103417

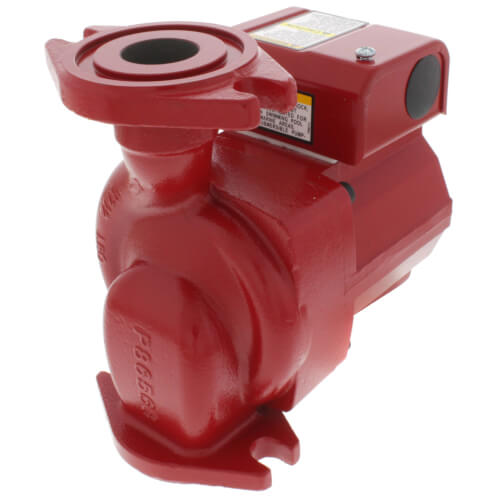

NRF-25 Red Fox Circulator Pump, 3 Speed

Overview
A residential or light commercial, maintenance free, axial flanged, in-line, cast iron, wet rotor, circulation pump for hydronic heating systems. UL and cUL listed.

Features

High starting torque provides years oftrouble-free start-ups
Unique B&G DuraGlide Bearing System assureswhisper-quiet, maintenance-free operation
Closed impeller design improves operating efficiency
Backed by B&G's representatives and a great3-year warranty

Specifications

Item Number	103417
Brand	Bell & Gossett
Amperage	1.2
Application	Heating
Connection Size	1-1/2"
Connection Type	Flanged x Flanged
Family	CIRCULATOR PUMPS
Flow Range (GPM)	0-24
Head Range (ft.)	0-19
Hertz	60
Horse Power	1/15
Material	Cast Iron
Max Flow (GPM)	24
Max Head (Ft)	19
Max Pressure (PSI)	150
Max Temp (F)	225°F
Phase	1
Pump Type	Cast Iron Pumps
Pump Type	Circulator Pumps
RPM	2950
Series	NRF Red Fox Series Cast Iron Pumps
Type	3-Speed Pump
Type	Pump
Voltage	115v
Warranty	3 Year
