103404 | 1/6 HP, NRF-45 3-Speed Circulator Pump | Bell & Gossett

Bell & Gossett | 103404
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 103404

Documents and manuals

Overview

Details for 103404

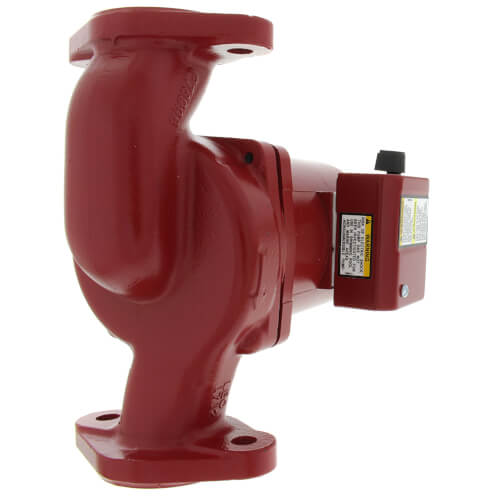

1/6 HP, NRF-45 3-Speed Circulator Pump

A residential or light commercial, maintenance free, axial flanged, in-line, cast iron, wet rotor, circulation pump for hydronic heating systems.
Specifications
  • Pump Body Material: Cast Iron

  • Electrical Rating: 115V

  • Motor: 3300 RPM Full Speed

  • Full Load Current: 2.30 Amp

  • Thermal Protection: Impedance

  • Inlet/Outlet: Flanged

  • Max. Operating Pressure: 150 PSI (10 bars)

  • Max. Operating Temperature:
    • cast iron body: 240°F (115°C)

    • brass and stainless steel body: 230°F(107°C)

Specifications

Item Number 103404
Brand Bell & Gossett
Amperage 2.3
Application Heating
Connection Size 1-1/2"
Connection Type Flanged x Flanged
Family CIRCULATOR PUMPS
Flow Range (GPM) 0-44
Head Range (ft.) 0-27
Hertz 60
Horse Power 1/6
Material Cast Iron
Max Flow (GPM) 44
Max Head (Ft) 27
Max Pressure (PSI) 150
Max Temp (F) 225°F
Phase 1
Pump Type Cast Iron Pumps
Pump Type Circulator Pumps
RPM 3300
Series NRF Red Fox Series Cast Iron Pumps
Type 3-Speed Pump
Type Circulator
Type Pump
Voltage 115v
Warranty 3 Year
