103350 | 1/15 HP, NRF-33 Circulator Pump | Bell & Gossett

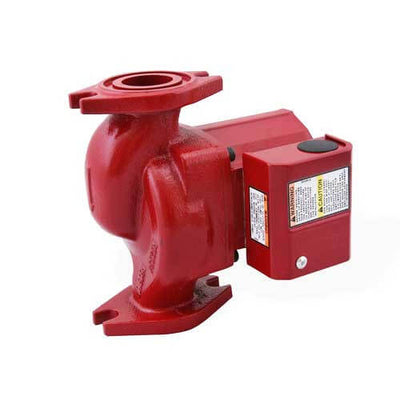

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 103350

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 103350 Documents

Datasheet Catalog PartS & Accessories Installation Instructions

Overview

Details for 103350

1/15 HP, NRF-33 Circulator Pump

A residential or light commercial, maintenance free, axial flanged, in-line, cast iron, wet rotor, circulation pump for hydronic heating systems.

Specifications

Pump Body Material: Cast Iron
Electrical Rating: 115V
Motor: 2950 RPM Full Speed
Full Load Current: 1.10 Amp
Thermal Protection: Impedance
Inlet/Outlet: Flanged
Max. Operating Pressure: 150 PSI (10 bars)
Max. Operating Temperature: 240°F (115°C)

Specifications

Item Number	103350
Brand	Bell & Gossett
Amperage	1.1
Application	Heating
Connection Size	1-1/2"
Connection Type	Flanged x Flanged
Family	CIRCULATOR PUMPS
Flow Range (GPM)	0-37
Head Range (ft.)	0-12
Hertz	60
Horse Power	1/15
HP	1/15
Material	Cast Iron
Max Flow (GPM)	37
Max Head (Ft)	12
Max Pressure (PSI)	150
Max Temp (F)	225°F
Phase	1
Pump Type	Cast Iron Pumps
Pump Type	Circulator Pumps
RPM	2950
Series	NRF Red Fox Series Cast Iron Pumps
Type	Circulator
Type	Pump
Voltage	115v
Warranty	3 Year
