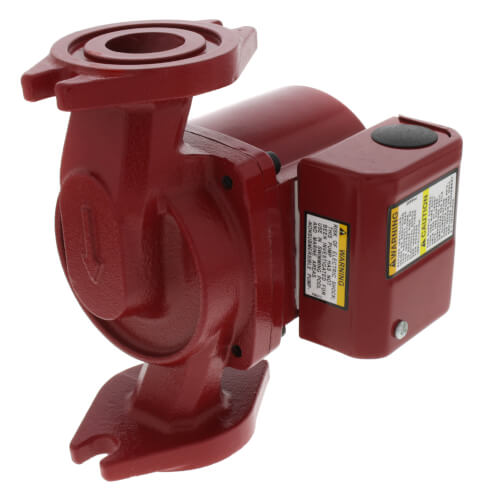

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 103267

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 103267 Documents

Datasheet Catalog PartS & Accessories Installation Instructions

Overview

Details for 103267

NRF-9F/LW Red Fox Circulator Pump, 1/40 HP

A residential or light commercial, maintenance free, axial flanged, in-line, cast iron, wet rotor, circulation pump for hydronic heating systems.

Specifications

Pump Body Material: Cast Iron
Electrical Rating: 115V
Motor: 2800 RPM Full Speed
Full Load Current: 0.4 Amp
Thermal Protection: Impedance
Inlet/Outlet: Flanged
Max. Operating Pressure: 150 PSI (10 bars)
Max. Operating Temperature: 240°F (115°C)

Specifications

Item Number	103267
Brand	Bell & Gossett
Amperage	0.4
Application	Heating
Connection Size	1-1/2"
Connection Type	Flanged x Flanged
Family	CIRCULATOR PUMPS
Flow Range (GPM)	0-13
Head Range (ft.)	0-8
Hertz	60
Horse Power	1/40
Material	Cast Iron
Max Flow (GPM)	13
Max Head (Ft)	8
Max Pressure (PSI)	150
Max Temp (F)	240°F
Phase	1
Pump Type	Cast Iron Pumps
Pump Type	Circulator Pumps
RPM	2800
Series	NRF Red Fox Series Cast Iron Pumps
Type	Pump
Voltage	115v
Warranty	3 Year
