102222 | 1/4 HP, LD3 Circulator Pump | Bell & Gossett

Brand: Bell & GossettSKU: 102222

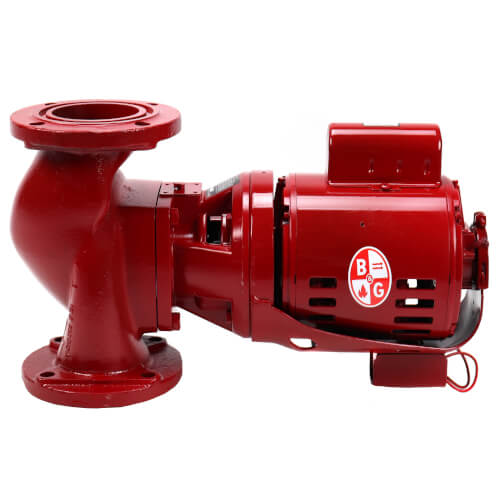

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 102222

Jump to: Overview & Specifications Reviews

Overview Details for 102222

1/4 HP, LD3 Circulator Pump

Overview
The Series 100 is a leader in applications such as hydronic heating and domestic hot water circulation, with over 10 million units installed. Series 100's three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Series 100 oil lubricated motor is specifically designed for the Series 100, and its resilient mounting provides quiet, dependable service with minimum annual lubrication. UL and CSA listings are standard. The design of this motor, coupled with its overall hydraulic performance, allows the Series 100 to overcome system related noise caused by valves, fittings, or piping.
Operating Data

Maximum working pressure: 125 psi (8.6 bar)

Maximum operating temperature

Standard Seal: 225°F (107°C) continuous

Special Seals: 250°F (121°C) continuous

Applications: Reliable Circulators for Residential Heating Systems.

Specifications

Item Number	102222
Brand	Bell & Gossett
Amperage	3
Application	Heating
Connection Size	3"
Connection Type	Flanged x Flanged
Family	CIRCULATOR PUMPS
Flow Range (GPM)	0-110
Head Range (ft.)	2-16
Hertz	60
Horse Power	1/4
HP	1/4
Material	Cast Iron
Max Flow (GPM)	110
Max Head (Ft)	16
Max Pressure (PSI)	125
Max Temp (F)	225°F
Min Head (Ft)	2
Phase	1
Pump Type	Cast Iron Pumps
RPM	1725
Series	100 Series Cast Iron Booster Pumps
SubType	Three Piece Cast Iron Booster Pumps
Type	Pump
Voltage	115v
