102206 | 1/6 HP, PR Circulator Pump | Bell & Gossett

Bell & Gossett | 102206

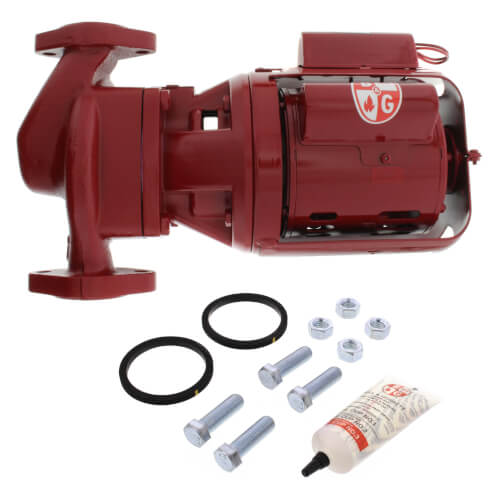

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 102206

Documents and manuals

Overview

Details for 102206

1/6 HP, PR Circulator Pump

Overview
The Series 100 is a leader in applications such as hydronic heating and domestic hot water circulation, with over 10 million units installed. Series 100's three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Series 100 oil lubricated motor is specifically designed for the Series 100, and its resilient mounting provides quiet, dependable service with minimum annual lubrication. UL and CSA listings are standard. The design of this motor, coupled with its overall hydraulic performance, allows the Series 100 to overcome system related noise caused by valves, fittings, or piping.
Operating Data
  • Maximum working pressure: 125 psi (8.6 bar)

  • Maximum operating temperature

    • Standard Seal: 225°F (107°C) continuous

    • Special Seals: 250°F (121°C) continuous

  • Applications: Reliable Circulators for Residential Heating Systems

Specifications

Item Number 102206
Brand Bell & Gossett
Amperage 1.9
Application Heating
Connection Size 1-1/2"
Connection Type Flanged x Flanged
Family CIRCULATOR PUMPS
Flow Range (GPM) 0-27
Head Range (ft.) 0-17.5
Hertz 60
Horse Power 1/6
HP 1/16
Material Cast Iron
Max Flow (GPM) 27
Max Head (Ft) 17.5
Max Pressure (PSI) 125
Max Temp (F) 225°F
Phase 1
Pump Type Cast Iron Pumps
RPM 1725
Series 100 Series Cast Iron Booster Pumps
SubType Three Piece Cast Iron Booster Pumps
Type Pump
Voltage 115v
