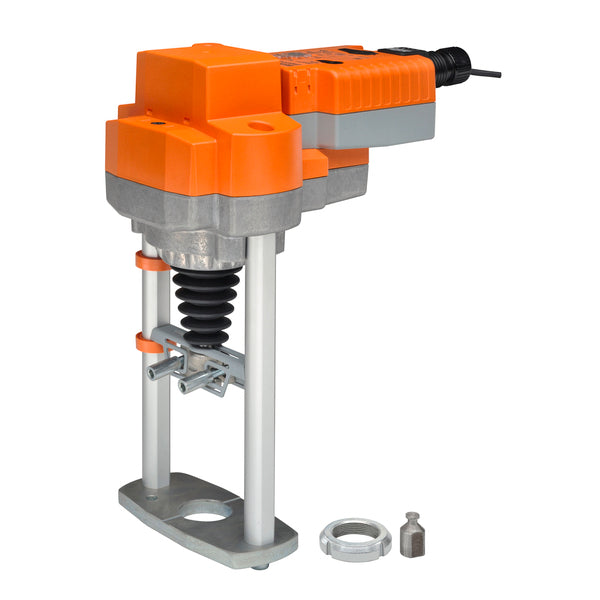

WGVL+AVKX24-MFT | WGVL w/ Electronic FS | 450 lbf | 24V | MFT | Belimo
Retrofit valve linkageFor Warren Globe Valve with AVK/EV/RV Series Actuators|Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable
Overview
Details for WGVL+AVKX24-MFT
WGVL w/ Electronic FS | 450 lbf | 24V | MFT
Application
The WGVL retrofit kit is designed to easily attach AVK, EV and RV series actuators to select Warren globe valves. Its casted base and lower lock nut allow the WGVL to be mounted on 2-1/2” to 6” two-way or three-way valves in both normally open and normally closed configurations.
Operation
The WGVL linkage with actuator will provide 50 mm of linear travel to accommodate a wide range of valve sizes.
Default/Configuration
The default set up for a WGVL linkage will be factory installed along with an AVK or EV, RV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the Warren valve.
Specifications
- Actuator Type
- Electrical fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Fluid
- Chilled or hot water and steam
- Force
- 2000 N [450 lbf]
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 5 W
- Protection category
- IP54
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 90 s /
- Running Time range (Motor)
- 90...150 s
- Stroke
- 2" [50 mm]
- Voltage AC/DC
- AC/DC 24 V
