G232B-M+LVB24-SR | Globe Valve | 1.25" | 2 Way | 20 Cv | w/ Non-Spring | 24V | Modulating | Belimo

Globe Valve (GV), 1 1/4", 2-way, ANSI Class 250, Cv 20 |Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, modulating

Belimo | G232B-M+LVB24-SR

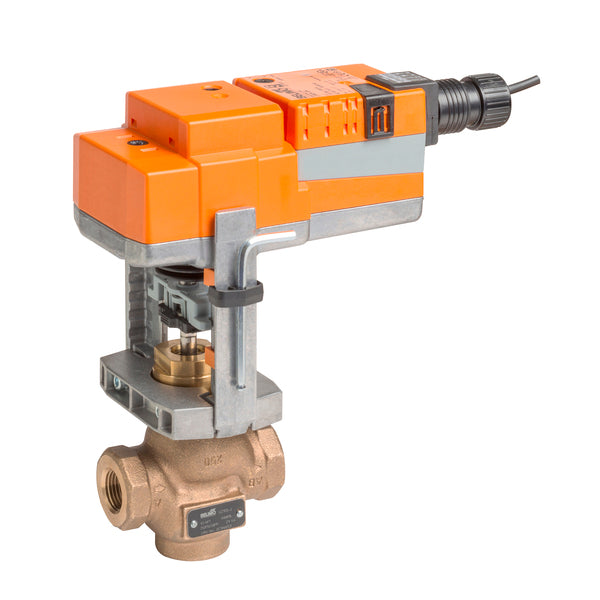

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G232B-M+LVB24-SR
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo G232B-M+LVB24-SR Documents

Datasheet Installation Instructions More Info

Overview

Details for G232B-M+LVB24-SR

Globe Valve | 1.25" | 2 Way | 20 Cv | w/ Non-Spring | 24V | Modulating

For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. A feedback signal is provided for position indication.

Specifications

Valve specifications
ANSI Class
250
Controllable Flow Range
Stem up - open A b AB
Cv
20
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Bronze
Valve Size
1.25" [32]
Actuator specifications
Actuator Type
Non fail-safe
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Force
500 N [115 lbf]
Manual Override
4 mm hex crank (shipped w/actuator)
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
1 W
Running Time (Motor)
90 s /
Stroke
0.75" [19 mm]
Voltage AC/DC
AC/DC 24 V
