FGVL+EVB24-MFT | FGVL w/ Non-Spg | 562 lbf | 24V | MFT | Belimo

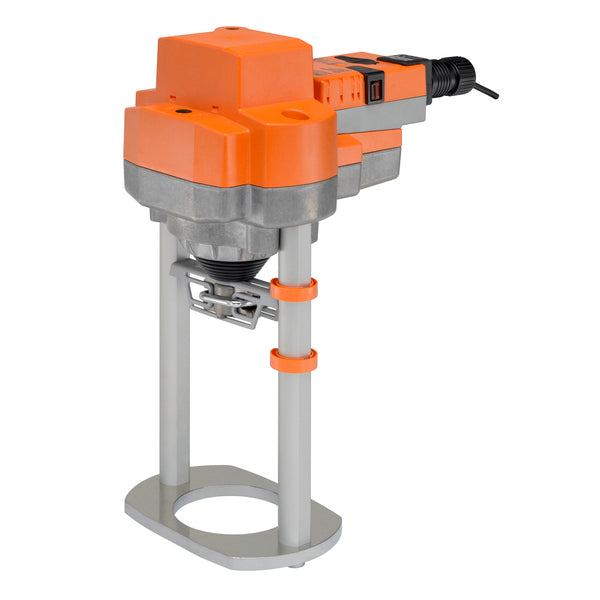

Retrofit valve linkageFor Flanged Globe Valve with AVK/EV/RV Series Actuators|Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable
Overview
Details for FGVL+EVB24-MFT
FGVL w/ Non-Spg | 562 lbf | 24V | MFT
Application
The FGVL retrofit kit is designed to easily attach AVK, EV and RV series actuators to select Flanged globe valves requiring larger stem travels and higher forces. Its casted base and lower locking clamp allow the FGVL to be mounted on 2-1/2” to 6” two-way or three-way valves in both normally open and normally closed configurations.
Operation
The FGVL linkage with actuator will provide up to 2” [50 mm] of linear travel to accommodate a wide range of valve sizes.
Default/Configuration
The default set up for a FGVL linkage will be factory installed along with an AVK or EV, RV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the valve.
Specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Fluid
- Chilled or hot water and steam
- Force
- 2500 N [560 lbf]
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 5 W
- Protection category
- IP54
- Running Time (Motor)
- 90 s /
- Running Time range (Motor)
- 90...150 s
- Stroke
- 1.25" [32 mm] AVK 2" [50 mm] EV/RV
- Voltage AC/DC
- AC/DC 24 V
