F780-300SHP+PKRXUP-MFT-T | Butterfly Valve | 3" | 3 Way | 223 Cv | w/ Electronic Fail-Safe | 24 -240V | MFT | SW | NEMA 4XH | Belimo

Butterfly Valve (BFV), 3", 3-way, ANSI Class 300, Cv 228 |Configurable Valve Actuator, Electronic fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

Belimo | F780-300SHP+PKRXUP-MFT-T

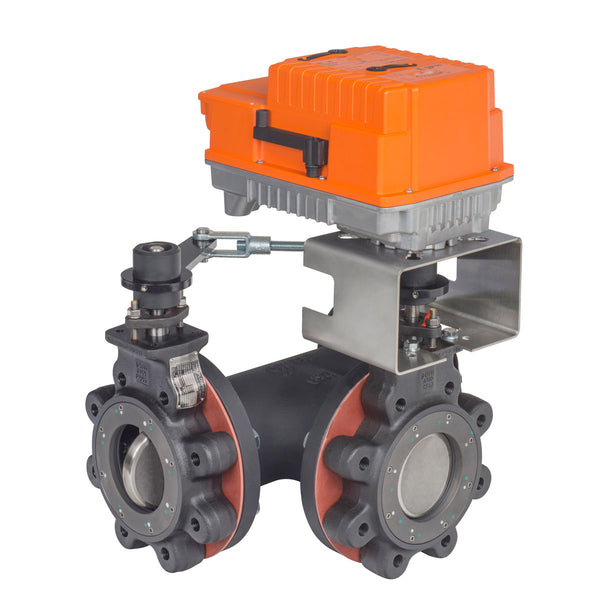

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F780-300SHP+PKRXUP-MFT-T
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo F780-300SHP+PKRXUP-MFT-T Documents

Datasheet More Info

Overview

Details for F780-300SHP+PKRXUP-MFT-T

Butterfly Valve | 3" | 3 Way | 223 Cv | w/ Electronic Fail-Safe | 24 -240V | MFT | SW | NEMA 4XH

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
300
Controllable Flow Range
Quarter turn mechanically limited
Cv
228
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Valve Size
3" [80]
Actuator specifications
Actuator Type
Electrical fail-safe
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
7 mm hex crank supplied
Power Consumption (Holding)
9 W
Power Consumption (Running)
52 W
Running Time (Fail-safe)
<30 s
Running Time (Motor)
35 s / 90B0
Voltage AC/DC
AC 24...240 V / DC 24...125 V
