F780-150SHP+PRXUP-MFT-T | Butterfly Valve | 3" | 3 Way | 228 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH | Belimo

Butterfly Valve (BFV), 3", 3-way, ANSI Class 150, Cv 228 |Configurable Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

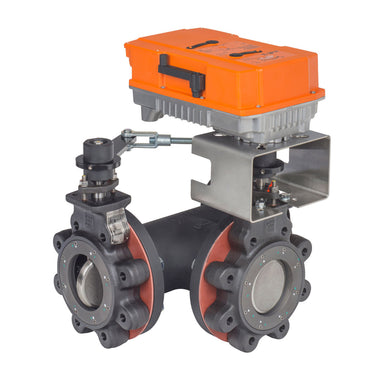

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to F780-150SHP+PRXUP-MFT-T

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo F780-150SHP+PRXUP-MFT-T Documents

Datasheet More Info

Overview

Details for F780-150SHP+PRXUP-MFT-T

Butterfly Valve | 3" | 3 Way | 228 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH

These valves are designed to meet the needs of HVAC and Commercial applications requiring positive shut-off for liquids at higher pressures and temperatures. Typical applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control, bypass and process control applications. The large Cv values provide for an economical control valve solution for larger fl ow applications.

Specifications

Item Number	F780-150SHP+PRXUP-MFT-T
Brand	Belimo
Control Input	Belimo MFT (Modulating)
Control Valves Type	Butterfly Valve
Cv / GPM	228 Cv
End Switch	Yes
Housing	NEMA 4XH
Spring Return	Non-Spring Return
Valve Size	3" - 3 Way
Voltage	24-240V
