F7150-150SHP+SY4-120MFT | Butterfly Valve | 6" | 3 Way | 1103 Cv | w/ Non-Spring | 120V | MFT | SW | NEMA 4XH | Belimo
Butterfly Valve (BFV), 6", 3-way, ANSI Class 150, Cv 1103 |Configurable Valve Actuator, Non fail-safe, AC 120 V, 2...10 V, 2 x SPDT, MFT/programmable

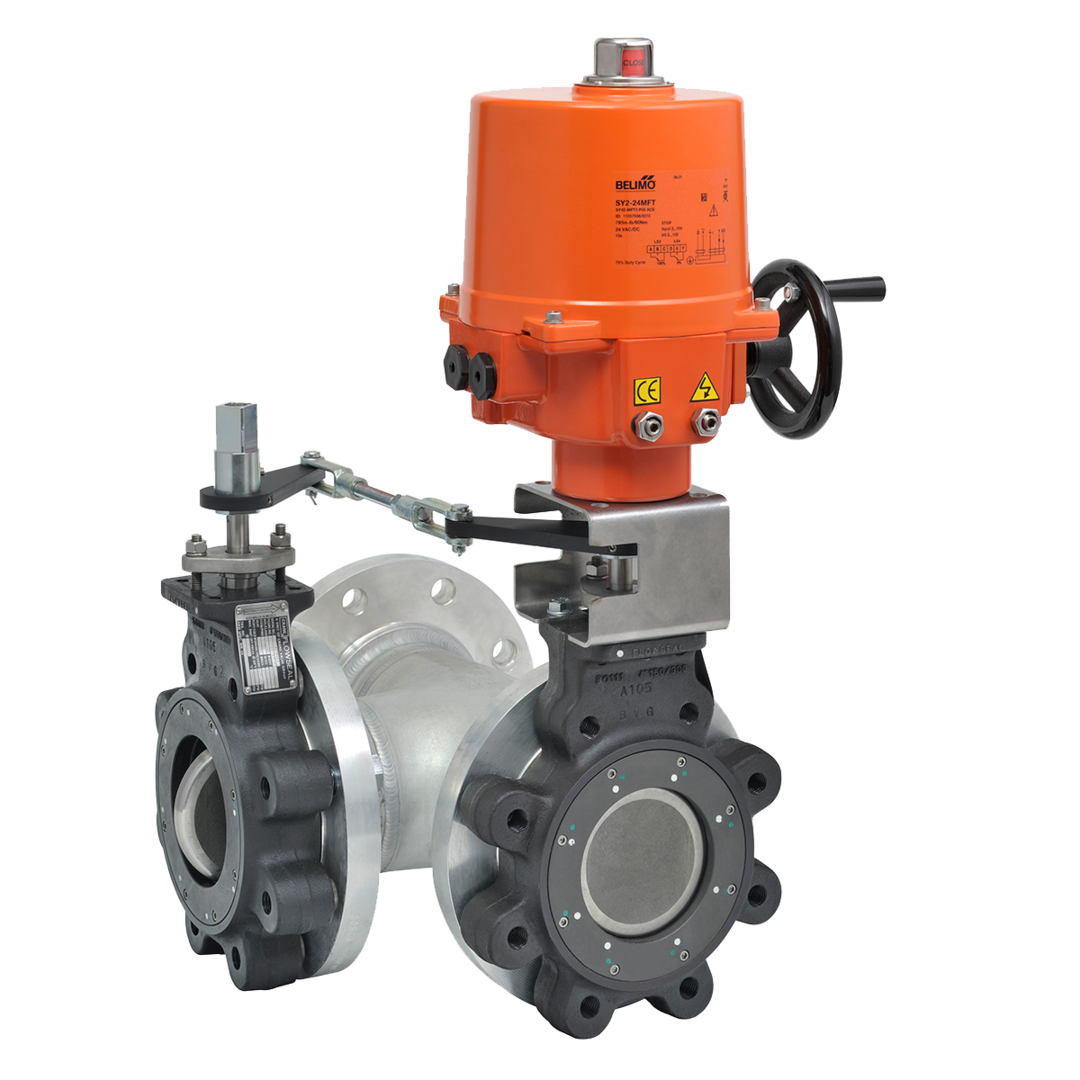

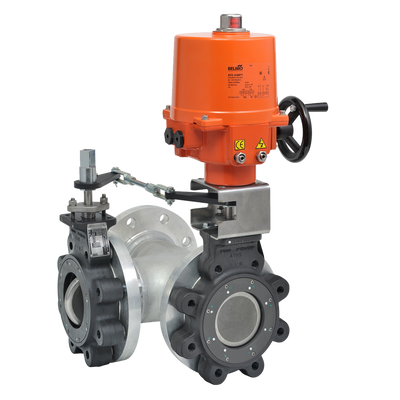

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F7150-150SHP+SY4-120MFT
Overview
Details for F7150-150SHP+SY4-120MFT
Butterfly Valve | 6" | 3 Way | 1103 Cv | w/ Non-Spring | 120V | MFT | SW | NEMA 4XH
SY Series actuators are fractional horsepower devices, and utilize full-wave power supplies. Observe wire sizing and transformer sizing requirements. Proportional models CANNOT be connected to Belimo direct coupled (AF, AM, GM…etc) actuator power supplies or any type of half-wave device. You MUST use a separate, dedicated transformer or power supply to power the SY actuator. Please do not connect other automation equipment to the dedicated SY supply source. You MUST use four wires (plus a ground) to control a proportional control SY actuator (See SY Wiring Section).Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 150
- Controllable Flow Range
- Quarter turn mechanically limited
- Cv
- 1103
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Valve Size
- 6" [150]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- Hand wheel
- Running Time (Motor)
- 24 s
- Voltage AC/DC
- AC 120 V
