F7125VIC+PKRXUP-MFT-T | Butterfly Valve | 5" | 3 Way | 1200 Cv | w/ Electronic Fail-Safe | 24 to 240V (UP) | MFT | NEMA 4XH | Belimo
Butterfly Valve (BFV), 5", 3-way, ANSI Class Grooved AWWA, Cv 1200 |Configurable Valve Actuator, Electronic fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

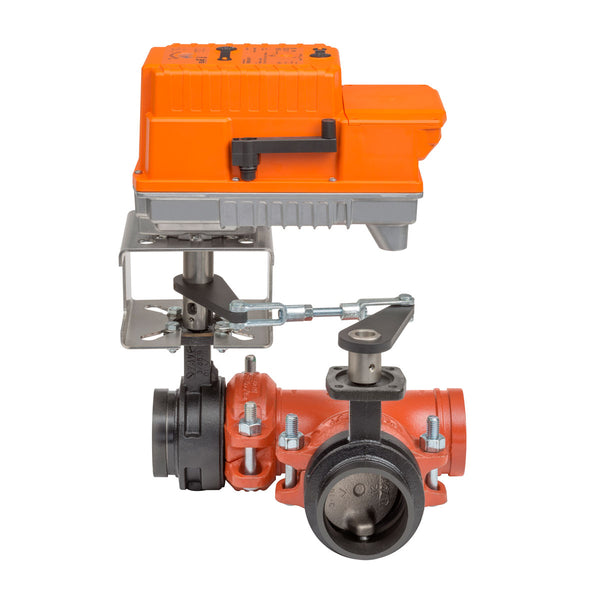

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F7125VIC+PKRXUP-MFT-T
Overview
Details for F7125VIC+PKRXUP-MFT-T
Butterfly Valve | 5" | 3 Way | 1200 Cv | w/ Electronic Fail-Safe | 24 to 240V (UP) | MFT | NEMA 4XH
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Grooved AWWA
- Controllable Flow Range
- 90B0 rotation
- Cv
- 1200
- End Connection
- Grooved types
- End Fitting
- Grooved
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Valve Size
- 5" [125]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 9 W
- Power Consumption (Running)
- 52 W
- Running Time (Fail-safe)
- <30 s
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
