F7125-150SHP+SY4-24 | Butterfly Valve | 5" | 3 Way | 714 Cv | w/ Non-Spring | 24V | On/Off | SW | NEMA 4XH | Belimo
Butterfly Valve (BFV), 5", 3-way, ANSI Class 150, Cv 714 |Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, 2 x SPDT

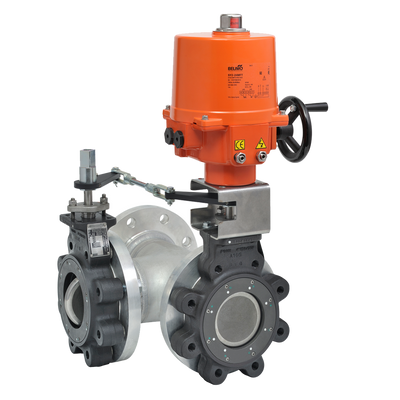

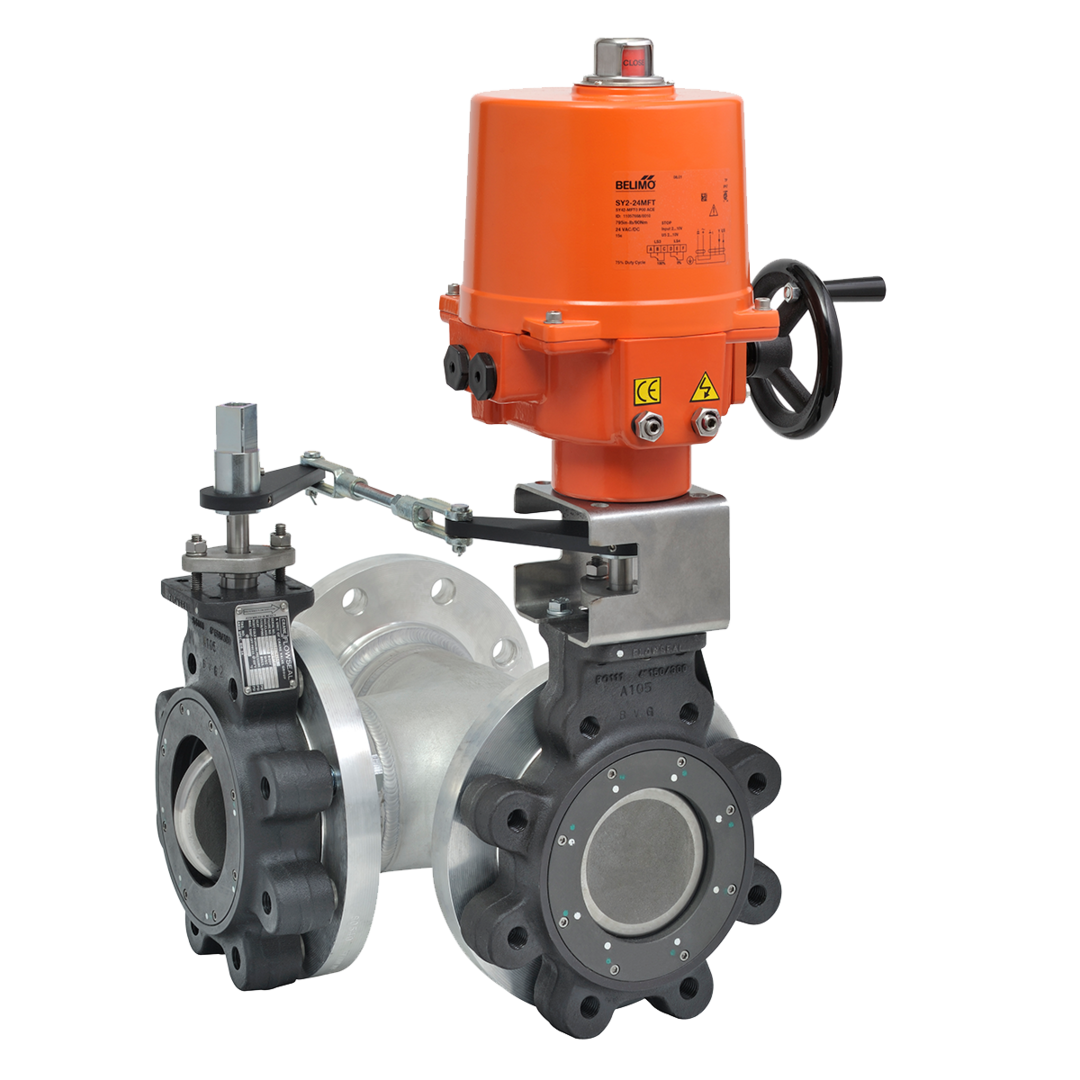

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F7125-150SHP+SY4-24
Overview
Details for F7125-150SHP+SY4-24
Butterfly Valve | 5" | 3 Way | 714 Cv | w/ Non-Spring | 24V | On/Off | SW | NEMA 4XH
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 150
- Controllable Flow Range
- Quarter turn mechanically limited
- Cv
- 714
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Valve Size
- 5" [125]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- Hand wheel
- Running Time (Motor)
- 20 s
- Voltage AC/DC
- AC/DC 24 V
