F6300L+PRBUP-3-T | Butterfly Valve | 12" | 2 Way | 8250 Cv | w/Non-Spring | 24 -240V | On/Off | Belimo

Butterfly Valve (BFV), 12", 2-way, ANSI Class Consistent with 125, Cv 8250 |Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, On/Off, Floating point, 2 x SPDT, terminals

Belimo | F6300L+PRBUP-3-T

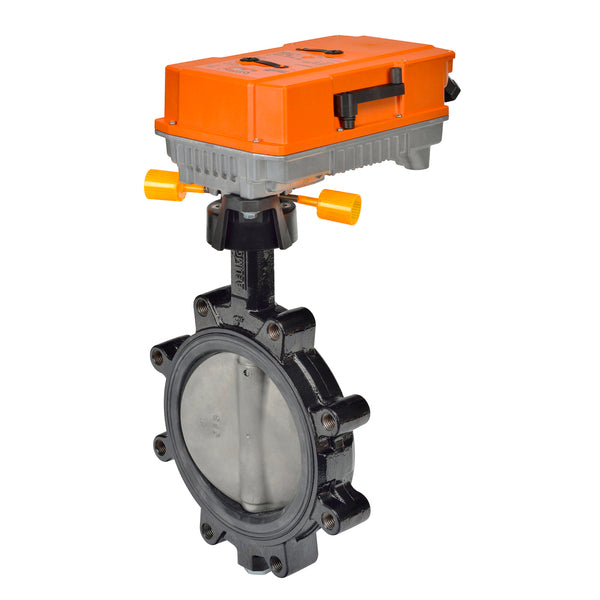

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6300L+PRBUP-3-T
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo F6300L+PRBUP-3-T Documents

Datasheet More Info

Overview

Details for F6300L+PRBUP-3-T

Butterfly Valve | 12" | 2 Way | 8250 Cv | w/Non-Spring | 24 -240V | On/Off

Application

Valve is designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications with 0% leakage. Typical applications include cooling tower bypass, primary flow change-over systems, and large air-handler coil control. Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, ready for installation.


Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
Consistent with 125
Controllable Flow Range
90B0 rotation
Cv
8250
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Valve Size
12" [300]
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
2 x SPDT
Control Type
Floating/3-point
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
7 mm hex crank supplied
Power Consumption (Holding)
6 W
Power Consumption (Running)
20 W
Running Time (Motor)
35 s / 90B0
Voltage AC/DC
AC 24...240 V / DC 24...125 V
