F6150HDU+DRCX24-3-T | Butterfly Valve | 6" | 2 Way | 1579Cv | w/ Non-Spring | 24V | Floating | Belimo (OBSOLETE)

Butterfly Valve (BFV), 6", 2-way, ANSI Class Consistent with 125, Cv 1579 |Configurable Valve Actuator, Electronic fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

Belimo | F6150HDU+DRCX24-3-T

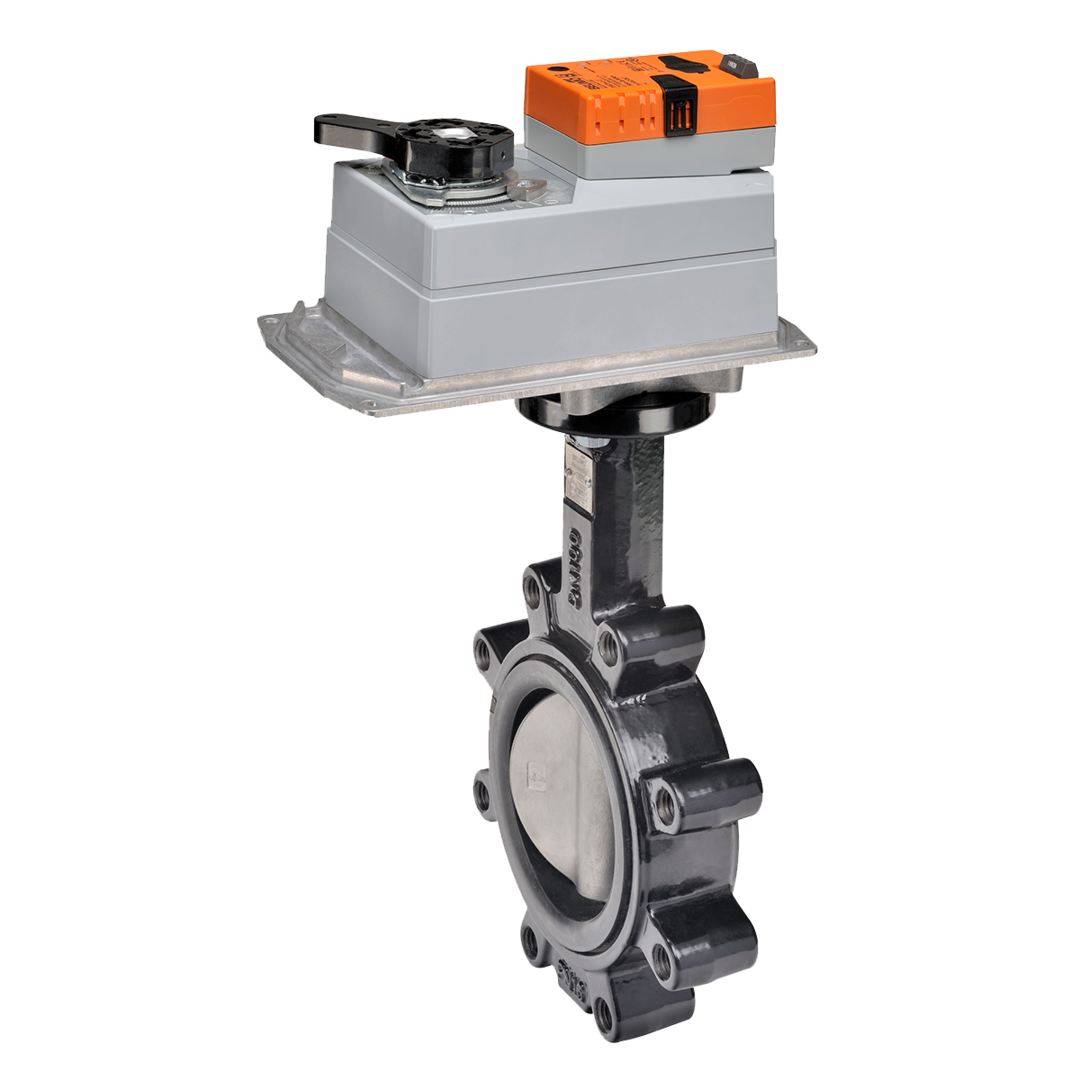

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6150HDU+DRCX24-3-T
Jump to: DocumentsOverview SpecificationsAlternativesReviews

Documents and manuals

Belimo F6150HDU+DRCX24-3-T Documents

Datasheet Installation Instructions

Overview

Details for F6150HDU+DRCX24-3-T

DISCONTINUED AND REPLACED WITH F6150HD+PKRXUP-MFT-T < F6150HDU+DRCX24-3-T

Butterfly Valve | 6" | 2 Way | 1579Cv | w/ Non-Spring | 24V | Floating

Specifications

Valve specifications
ANSI Class
Consistent with 125
Controllable Flow Range
90B0 rotation
Cv
1579
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Valve Size
6" [150]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
  • Floating/3-point
  • On/Off
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
terminals
Manual Override
External push button
Power Consumption (Holding)
3 W
Power Consumption (Running)
12 W
Running Time (Motor)
35 s / 90B0
Voltage AC/DC
AC/DC 24 V

Alternatives

Belimo F6150HD+PKRXUP-MFT-T < F6150HDU+DRCX24-3-T F6150HD+PKRXUP-MFT-T | for replacement of F6150HDU+DRCX24-3-T | Blackhawk Supply
F6150HD+PKRXUP-MFT-T < F6150HDU+DRCX24-3-T | F6150HD+PKRXUP-MFT-T | for replacement of F6150HDU+DRCX24-3-T | Belimo (OBSOLETE)
