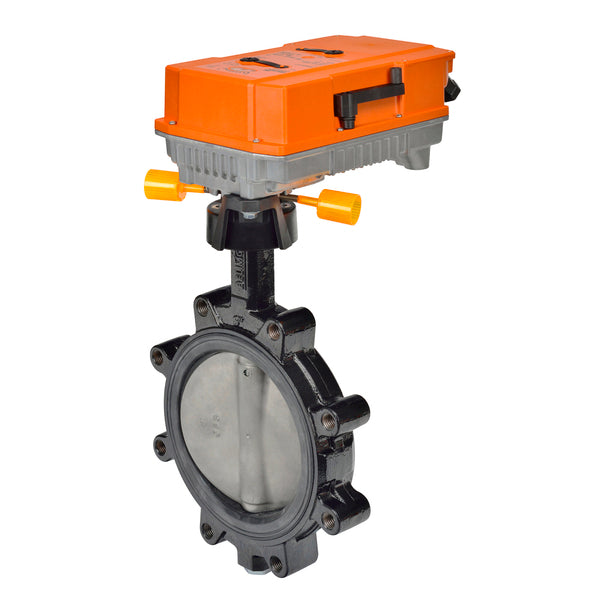

Details for F6150HD+PRBUP-3-T
Butterfly Valve | 6" | 2 Way | 1579 Cv | w/Non-Spring | 24 -240V | On/Off
Valve is designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications with 0% leakage. Typical applications include cooling tower bypass, primary flow change-over systems, and large air-handler coil control. Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, ready for installation.
Description
F6150HD
The F6150HD is a Belimo’s two-way butterfly valve from the F6 series. This valve provides quarter-turn rotational motion, allowing it to stop, start, and regulate the opening of the valve. Belimo’s valve works excellently with extreme temperatures and high-pressure applications.
All F6 series butterfly valves suit most industrial and commercial heating, ventilation, and air conditioning (HVAC) systems and extensive air handler coil applications with water and stem.
Belimo’s F6150HD is a two-way valve, meaning you can use it in almost every HVAC system that requires the process fluids regulations. It has many applications — from basic ON/OFF to complex variable flow applications with pumps and VFD.
F6150HD (and other valves in the F6 series with “HD” model number) have a 200 (pounds per square inch differential) PSID rating. The valve comes in different sizes, combinations, and connection types.
Benefits & Features
F6150HD
- Highly efficient. The F6 series butterfly valves have a tight shutoff, low seating torque, precise flow control, and high-pressure rating.
- Industrial-grade enclosure. The valve has a NEMA 4 enclosure rating, making it highly resistant to corrosion, moisture, and various weather conditions.
- Long service life. The F6150HD is made from stainless steel, which ensures excellent durability and minimal maintenance.
Specifications
PRBUP-3-T
The F6150HD is a Belimo’s valve actuator that supplies the valve with power for fluid control with an energy-efficient brushless DC motor.
- The equipment has an electronic fail-safe mechanism to protect it from damages in case of overload.
- The DC motor works from a universal power supply with the supply voltage ranging from 24 to 125 VDC or 24 to 240 VAC.
- Visual indicators can guide you to the tightest position of the valve.
- Two auxiliary switches (one of them is adjustable, the other one is set at 10 degrees).
- Smart heater connected to a built-in thermostat to prevent condensation.
- Adjustable running time (possible with an NFC-supported smartphone and a Belimo app).
Applications
PRBUP-3-T
Belimo’s valve actuators from the PR series, including PRBUP-3-T, have comprehensible visual position indicators to help adjust it to the correct position. It can be mounted indoors and outdoors.
- Mount the valve actuator directly under the valve for indoor applications.
- Mount the valve at or above horizontal for outdoor applications.
F6150HD
The F6150HD butterfly valve suits most HVAC systems with low operating torque that requires bubble-tight shutoff. The valve has a large valve flow coefficient, meaning it fits complex and large flow applications, including:
- Larger air handle coil control
- Process bypass and control
- Cooling tower isolation
- Chilling tower isolation
- Change-over systems
Keep the valve in a weather-protected area before the installation to prevent accidental damage. You can read more about it in the instruction manual.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 1579
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 6" [150]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 6 W
- Power Consumption (Running)
- 20 W
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
