F6125HD+DRCX24-3-T | Butterfly Valve | 5" | 2 Way | 1022Cv | w/ Non-Spring | 24V | Floating | Belimo
Butterfly Valve (BFV), 5", 2-way, ANSI Class Consistent with 125, Cv 1022 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, terminals

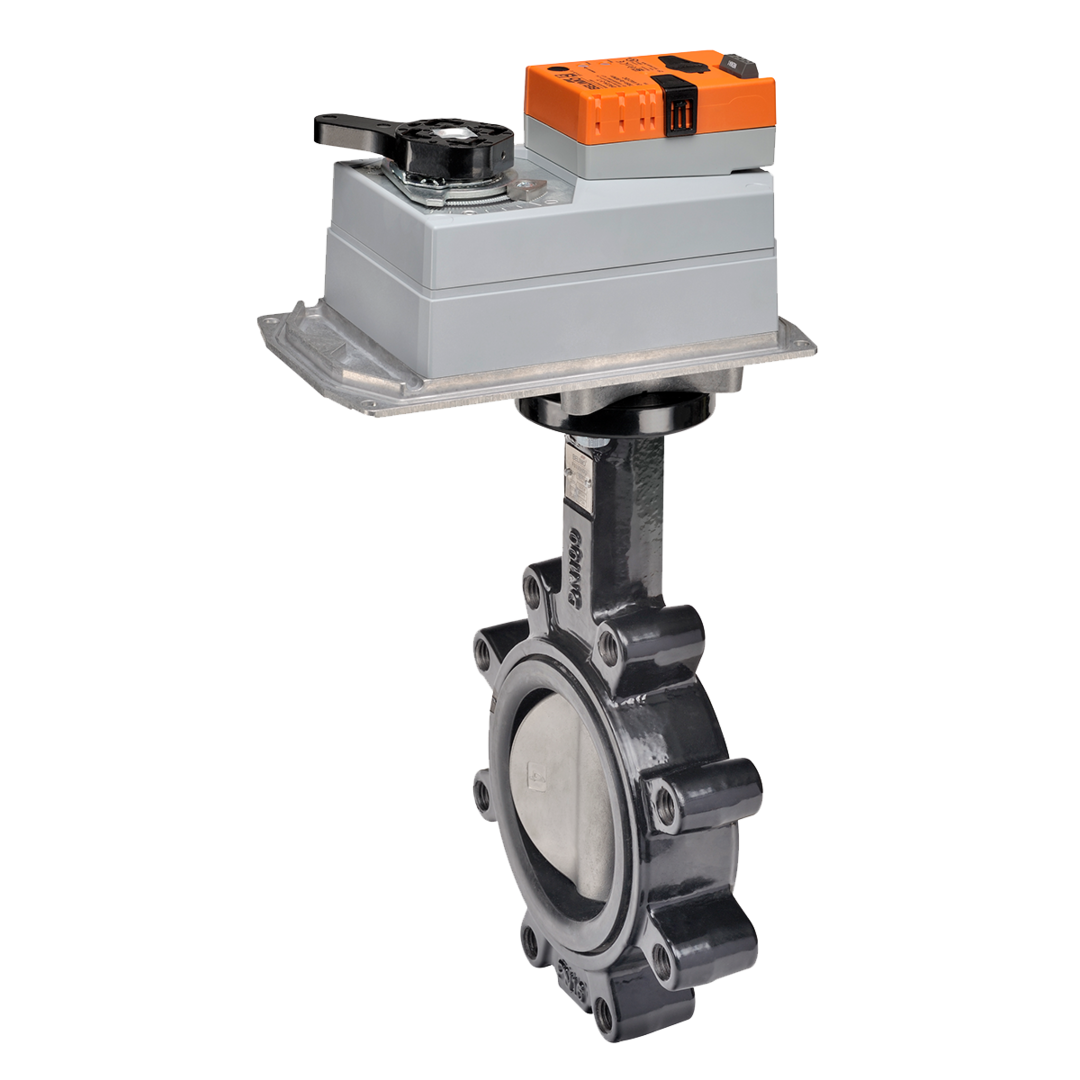

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6125HD+DRCX24-3-T
Documents and manuals
Belimo F6125HD+DRCX24-3-T Documents
Overview
Details for F6125HD+DRCX24-3-T
Butterfly Valve | 5" | 2 Way | 1022Cv | w/ Non-Spring | 24V | Floating
These valves are designed to meet the needs of HVAC and commercial applications requiring 0% leakage for liquids. Typical applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control, bypass and process control applications. The large Cv values provide for an economical control valve solution for larger flow applications. Designed for use in ANSI flanged piping systems.Specifications
- Valve specifications
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 1022
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 5" [125]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- On/Off
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- terminals
- Manual Override
- External push button
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 12 W
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
