F6100HD+DRX24-MFT-T | Butterfly Valve | 4" | 2 Way | 600Cv | w/ Non-Spring | 24V | MFT | Belimo
Butterfly Valve (BFV), 4", 2-way, ANSI Class Consistent with 125, Cv 600 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, terminals, MFT/programmable
Documents and manuals
Belimo F6100HD+DRX24-MFT-T Documents
Overview
Details for F6100HD+DRX24-MFT-T

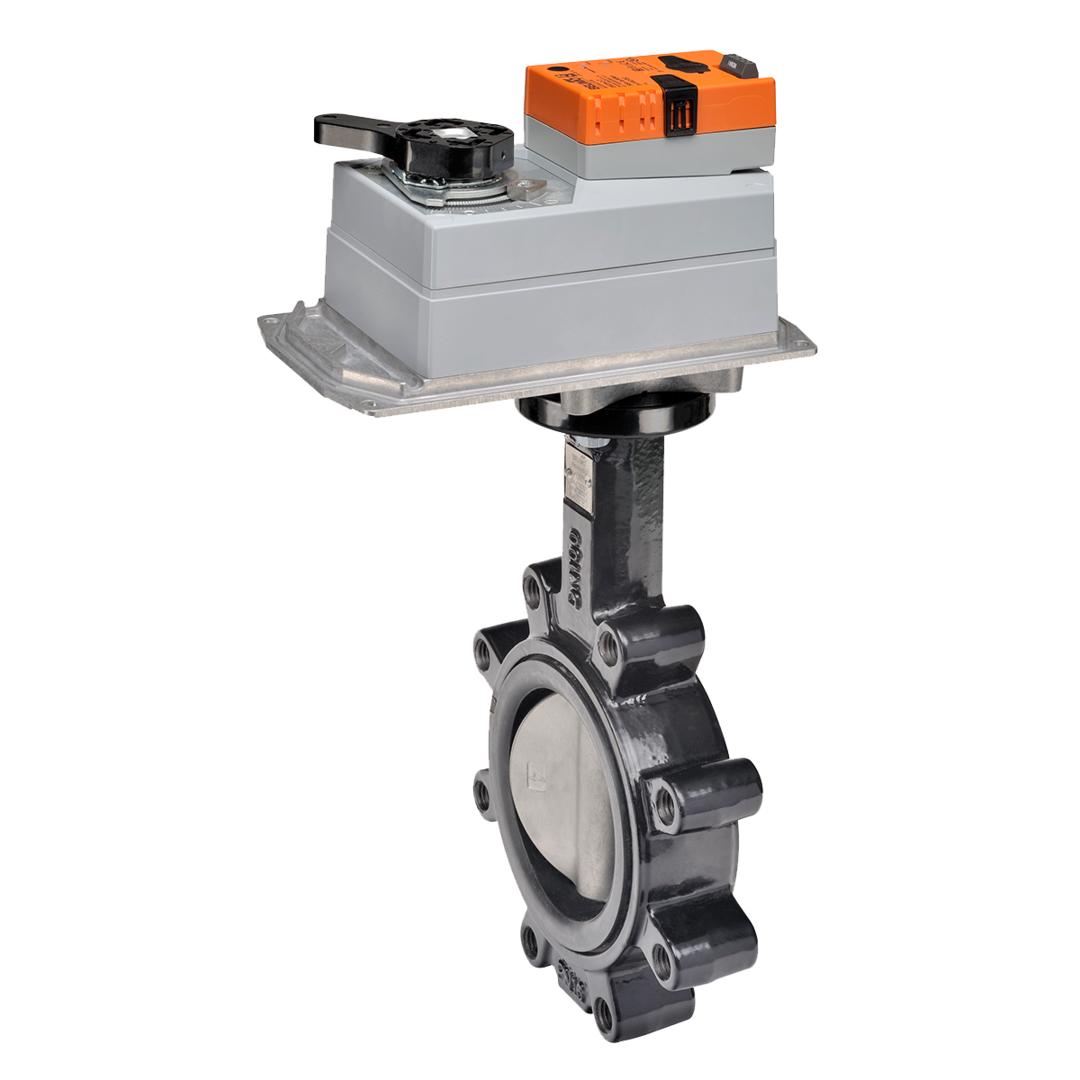

Butterfly Valve | 4" | 2 Way | 600Cv | w/ Non-Spring | 24V | MFT
Bttrfly Valve | 4" | 2 Way | 600 Cv | w/ Non-Spg | 24V | MFT
Product Features
200 psi (2” to 12”) and 150 psi (14” to 24”) 0% leakage, Long stem design allows for 2” insulation, Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, Ready for installation.
Application
These valves are designed to meet the needs of HVAC and commercial applications requiring 0% leakage for liquids. Typical applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control, bypass and process control applications. The large Cv values provide for an economical control valve solution for larger flow applications. Designed for use in ANSI flanged piping systems.
Jobsite Note
Valves should be stored in a weather protected area prior to construction. Complete installation recommendations can be found in Belimo’s Installation and Maintenance Instructions for F6/F7… Butterfly Valves.
Resources
Specifications
- Valve specifications
- ANSI Class
- Consistent with 125
- Close-off Pressure
- 200 kPa
- Controllable Flow Range
- 90B0 rotation
- Cv
- 600
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 4" [100]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- terminals
- Manual Override
- External push button
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 12 W
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
